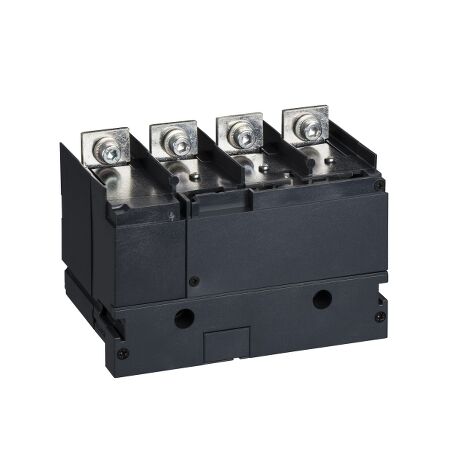

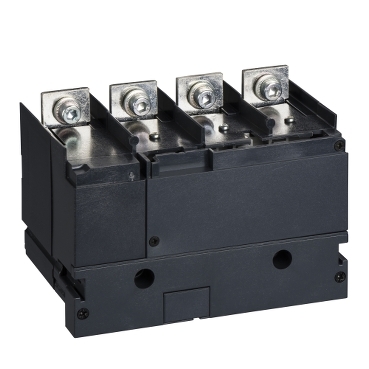

CT Module 4P 125A 5A | High Accuracy | Compact Design | DIN Rail Mount | @Pack of 1 | by Clipsal
The CT Module 4P 125A 5A is a high-accuracy current transformer designed for reliable energy monitoring in commercial and industrial applications. With a primary current rating of 125A and a secondary output of 5A, this compact module integrates seamlessly into switchboards and energy metering systems, ensuring precise load management and protection. Ideal for licensed electricians, it complies with Australian standards for safe installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 4P 125A 5A | High Accuracy | Compact Design | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV429462
Alternatively Known As: Clipsal 4 Pole CT Module, Clipsal Current Transformer 125A, Clipsal SCHLV429462, 4P 125A 5A CT, Clipsal CT 4P 125A
Technical Specifications
- Primary Current: 125A
- Secondary Output: 5A
- Number of Poles: 4 (4P)
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 690V
- Mounting: DIN rail or panel mount
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 110mm x 70mm x 90mm
- Weight: 0.7 kg
Key Features
- 4-pole (4P) current transformer module
- Rated for 125A primary current and 5A secondary output
- High accuracy for reliable energy monitoring
- Compact design for easy integration into switchboards
- Suitable for use with energy meters and protection relays
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Commercial and industrial electrical panels
- Energy monitoring and metering systems
- Switchboards and distribution boards
- Load management and protection circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring for improved energy efficiency
- Supports load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 4P 125A 5A (SCHLV429462) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring accurate current measurement and energy monitoring.
