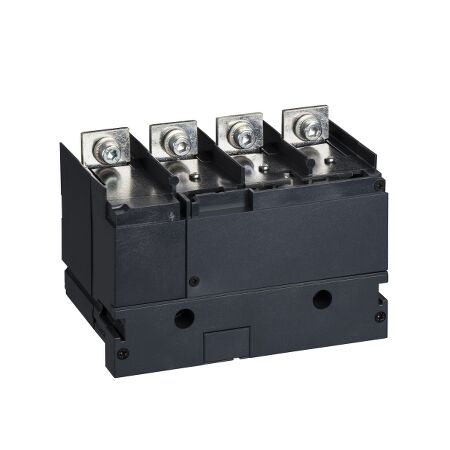

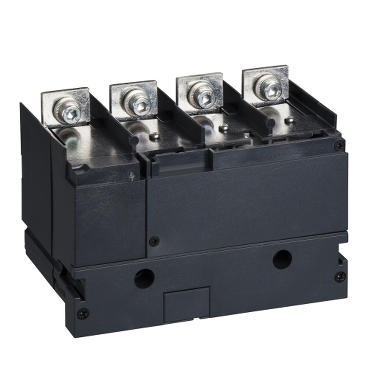

CT Module 4P 150 5A | High Accuracy | Compact Design | DIN Rail Mountable | @Pack of 1 | by Clipsal
The CT Module 4P 150 5A is a high-accuracy current transformer module designed for reliable energy measurement in electrical switchboards. With a primary current of 150A and a secondary current of 5A, this compact module is perfect for energy metering and monitoring systems, ensuring precise performance in both commercial and residential applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 4P 150 5A | High Accuracy | Compact Design | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV430562
Alternatively Known As: Current Transformer Module, 4 Pole CT, 150/5A CT, Clipsal CT Module, SCHLV430562
Technical Specifications
- Type: Current Transformer Module
- Poles: 4
- Primary Current: 150A
- Secondary Current: 5A
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 720V
- Mounting: DIN rail or panel mount
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 120mm x 60mm x 80mm
- Weight: 0.8 kg
Key Features
- 4-pole (4P) current transformer module
- Primary current: 150A, Secondary current: 5A
- High accuracy for reliable energy measurement
- Compact design for easy integration into switchboards
- Suitable for use with energy meters and protection relays
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with Australian standards and local regulations.
Applications
- Electrical switchboards
- Energy metering and monitoring systems
- Industrial automation panels
- Commercial and residential power distribution
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate energy monitoring, supporting energy efficiency initiatives.
- Assists in reducing unnecessary power consumption through precise measurement.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 4P 150/5A (SCHLV430562) is available for immediate purchase. Ideal for energy metering and monitoring in commercial, industrial, and residential switchboards.
