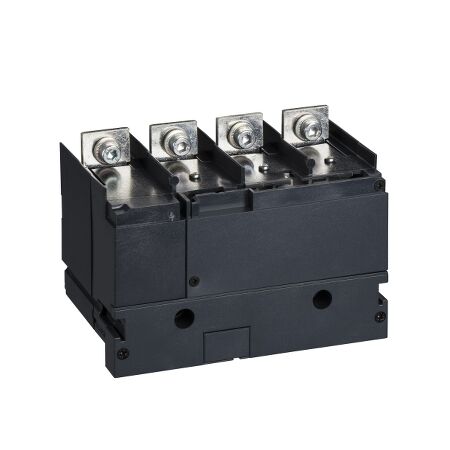

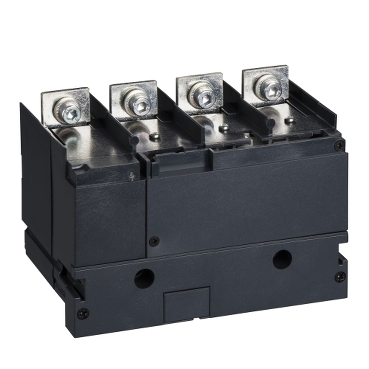

CT Module 4P 250A 5A | High Accuracy Current Transformer | Compact Design | by Clipsal
The CT Module 4P 250A 5A is a high-accuracy current transformer module designed for reliable current measurement in electrical switchboards. With a primary current rating of 250A and a secondary output of 5A, this compact module is perfect for energy monitoring and management systems. Ideal for commercial and industrial applications, it ensures precise energy usage and supports load management initiatives.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 4P 250A 5A | High Accuracy Current Transformer | Compact Design | by Clipsal
Brand: Clipsal
SKU: SCHLV431570
Alternatively Known As: Current Transformer Module, 4 Pole CT, Clipsal CT 250A 5A, SCHLV431570, 4P CT Module, Current Transducer 4P 250A
Technical Specifications
- Primary Current: 250A
- Secondary Output: 5A
- Number of Poles: 4 (4P)
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 720V
- Operating Temperature: -5°C to +40°C
- Mounting: DIN rail or panel mount
- Dimensions (H x L x W): 80mm x 100mm x 120mm
- Weight: 0.7 kg
Key Features
- 4-pole (4P) current transformer module
- Rated for 250A primary current and 5A secondary output
- High accuracy for reliable current measurement
- Compact design for easy installation in switchboards
- Suitable for use with energy meters and protection devices
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- Electrical switchboards for commercial and industrial buildings
- Energy monitoring and management systems
- Panel boards requiring current measurement and protection
- Integration with energy meters and protection relays
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives.
- Assists in load management to reduce unnecessary power consumption.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 4P 250 5A (SCHLV431570) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring accurate current measurement and energy monitoring.
