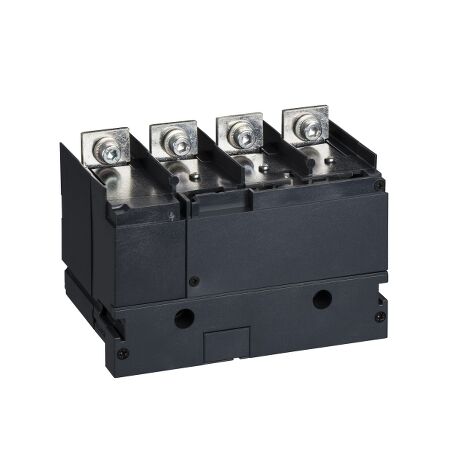

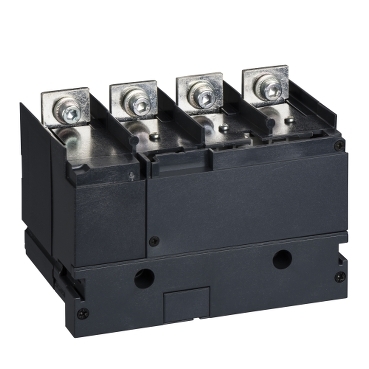

CT Module 4P 600A 5A | High Accuracy | Compact Design | DIN Rail Mount | @Pack of 1 | by Clipsal
The CT Module 4P 600A 5A is a high-accuracy current transformer module designed for reliable metering and monitoring in commercial and industrial applications. With a primary current rating of 600A and a secondary output of 5A, this compact module integrates seamlessly into switchboards, making it ideal for energy management systems and electrical panels.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 4P 600A 5A | High Accuracy | Compact Design | DIN Rail Mount | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLV432862
Alternatively Known As: Current Transformer Module, 4 Pole CT, 600A 5A CT, Clipsal CT Module, SCHLV432862
Technical Specifications
- Primary Current: 600A
- Secondary Output: 5A
- Number of Poles: 4
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 720V
- Operating Temperature: -5°C to +40°C
- Mounting: DIN rail or panel mount
- Dimensions (H x L x W): 80mm x 100mm x 120mm
- Weight: 0.7 kg
Key Features
- 4-pole current transformer module
- Rated for 600A primary current and 5A secondary output
- High accuracy for reliable metering and monitoring
- Compact design for easy integration into switchboards
- Suitable for use with Clipsal and Schneider Electric metering equipment
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Commercial and industrial electrical panels
- Energy management systems
- Metering and monitoring of electrical loads
- Switchboards and distribution boards
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives.
- Assists in reducing unnecessary power consumption through accurate load measurement.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 4P 600 5A (SCHLV432862) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring accurate current measurement.
