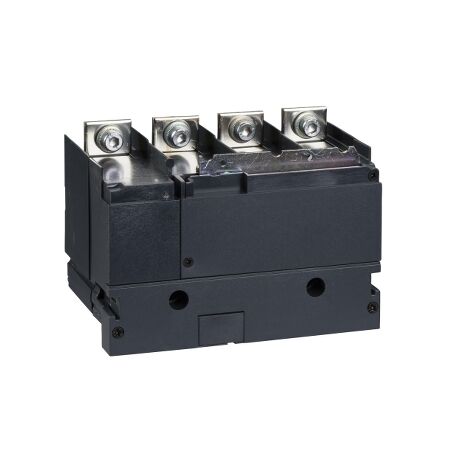

CT Module 4P Current Transformer | 400A Primary & 5A Secondary | High Accuracy | by Clipsal
The CT Module 4P Current Transformer is designed for precise current measurement in commercial and industrial switchboards, featuring a 400A primary and 5A secondary output. With a compact design and high accuracy, it integrates seamlessly into energy management systems, ensuring reliable metering and protection for your electrical circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Module 4P Current Transformer | 400A Primary & 5A Secondary | High Accuracy | by Clipsal
Brand: Clipsal
SKU: SCHLV432654
Alternatively Known As: Clipsal 4 Pole CT Module, Clipsal Current Transformer 400A 5A, SCHLV432654, 4P CT Module, Clipsal CT 400A
Technical Specifications
- Type: Current Transformer Module
- Poles: 4
- Primary Current: 400A
- Secondary Current: 5A
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 720V
- Mounting: DIN rail or panel mount
- Operating Temperature: -5°C to +40°C
- Dimensions (H x L x W): 90mm x 80mm x 120mm
- Weight: 0.7 kg
Key Features
- 4-pole current transformer module for accurate current measurement
- Rated for 400A primary and 5A secondary output
- Compact design for easy integration into switchboards
- High accuracy for reliable metering and protection
- Suitable for use with energy meters and monitoring devices
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian electrical standards and safe operation.
Applications
- Commercial and industrial electrical switchboards
- Energy management and monitoring systems
- Metering and protection circuits
- Panel boards requiring current measurement and load analysis
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Facilitates load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Module 4P 400A 5A (SCHLV432654) is available for immediate purchase. Ideal for commercial and industrial switchboards requiring accurate current measurement and energy monitoring.
