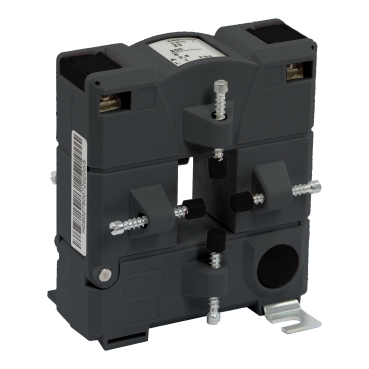

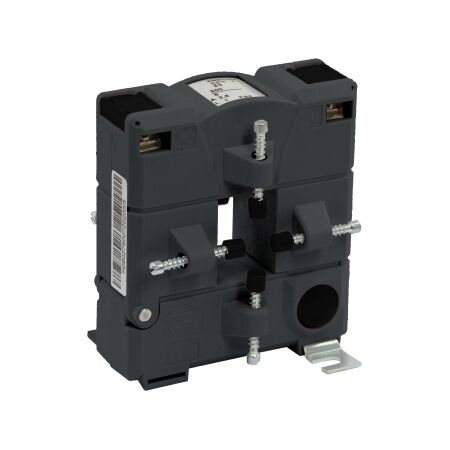

CT Split Core Type GD Bar 800A | 5A Secondary Ratio | High Accuracy | Easy Installation | @Pack of 1 | by Clipsal
The CT Split Core Type GD Bar 800A is designed for seamless energy monitoring in commercial and industrial settings. With a primary current of 800A and a secondary current of 5A, this split core current transformer ensures high accuracy and easy installation without disconnecting conductors. Ideal for retrofitting existing switchboards, it supports load analysis and integration with energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Split Core Type GD Bar 800A | 5A Secondary Ratio | High Accuracy | Easy Installation | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5GD080
Alternatively Known As: Split Core Current Transformer, 800A CT, Clipsal CT 800/5A, Bar Type Split Core CT, SCHMETSECT5GD080
Technical Specifications
- Primary Current: 800A
- Secondary Current: 5A
- Type: Split Core, Bar Type
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Voltage: 0.72/3kV
- Operating Temperature: -10°C to +50°C
- Mounting: Clip-on/split core for easy retrofit
- Dimensions (H x L x W): 150mm x 60mm x 120mm
- Weight: 2.5 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- Current transformer with 800A primary and 5A secondary ratio
- Suitable for bar-type busbars
- High accuracy for reliable current measurement
- Robust construction for long-term durability
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Retrofitting existing switchboards for current measurement
- Load analysis and sub-metering
- Integration with energy management systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency initiatives
- Facilitates load management to reduce unnecessary power consumption
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Split Core Type GD Bar 800x5A CTR (SCHMETSECT5GD080) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and retrofit applications.
