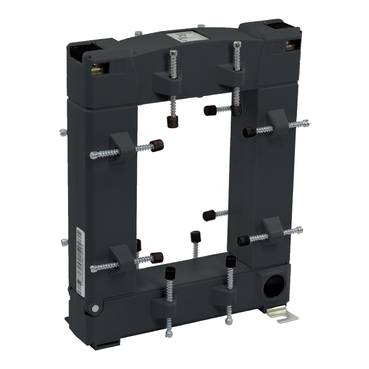

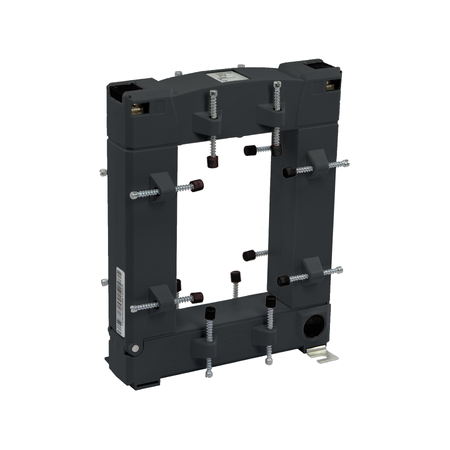

CT Split Core Type GG Bar | 1200A Primary | 5A Secondary | Retrofit Design | @Pack of 1 | by Clipsal
The CT Split Core Type GG Bar is designed for easy installation in electrical switchboards and energy management systems, featuring a 1200A primary and 5A secondary rating. With its split core design, it allows for retrofit applications without disconnecting conductors, ensuring high accuracy for metering and protection in industrial environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Split Core Type GG Bar | 1200A Primary | 5A Secondary | Retrofit Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5GG120
Alternatively Known As: Split Core Current Transformer, 1200A CT, Clipsal CT 1200x5A, SCHMETSECT5GG120, Bar Type CT, Split Core CT
Technical Specifications
- Primary Current: 1200A
- Secondary Current: 5A
- Core Type: Split core (Type GG Bar)
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Insulation Level: 0.72/3kV
- Mounting: Bar type, split core for retrofit
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 150mm x 60mm x 120mm
- Weight: 1.2 kg
Key Features
- Split core design for easy installation without disconnecting conductors
- Current transformer with 1200A primary and 5A secondary rating
- Suitable for retrofit applications
- High accuracy for metering and protection
- Robust construction for industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Electrical switchboards
- Energy management systems
- Industrial automation panels
- Commercial and industrial metering
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables accurate energy monitoring for improved energy efficiency
- Supports integration with energy management systems to reduce power wastage
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Split Core Type GG Bar 1200x5A CTR (SCHMETSECT5GG120) is available for immediate purchase. Ideal for electrical switchboards, energy management, and industrial metering applications.
