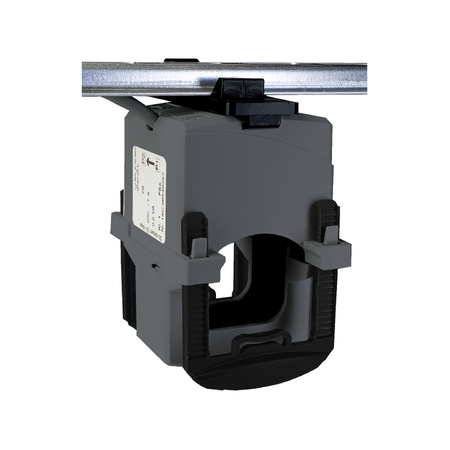

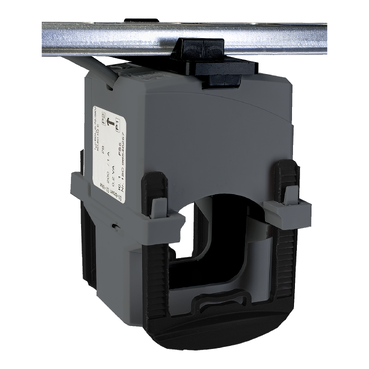

CT Split Core Type HD Cable 400A | 5A Secondary Output | Heavy Duty Design | by Clipsal
CT Split Core Type HD Cable 400A is designed for seamless energy monitoring in commercial and industrial settings. With a 5A secondary output and heavy-duty construction, it ensures reliable performance without the need to disconnect cables. Ideal for retrofitting existing electrical panels and integrating with PowerLogic systems, this cable supports energy efficiency and precise load analysis.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CT Split Core Type HD Cable 400A | 5A Secondary Output | Heavy Duty Design | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5HD040
Alternatively Known As: Split Core Current Transformer, 400A CT, PowerLogic CT, Clipsal CT 400A, Split Core CT 400A 5A, SCHMETSECT5HD040
Technical Specifications
- Primary Current: 400A
- Secondary Output: 5A
- Type: Split Core, Heavy Duty
- Application: Cable
- Compatible System: PowerLogic
- Frequency: 50/60Hz
- Insulation Class: E
- Accuracy Class: 1.0
- Operating Temperature: -10°C to +50°C
- Dimensions (H x L x W): 120mm x 50mm x 90mm
- Weight: 1.2 kg
Key Features
- Split core design allows for easy installation without disconnecting cables
- Rated for 400A primary current and 5A secondary output
- Heavy-duty (HD) construction for reliable performance in demanding environments
- Compatible with PowerLogic energy monitoring systems
- Ideal for cable applications
Professional Installation Requirements
- Installation should be performed by a licensed electrician to ensure correct operation and safety compliance.
Applications
- Energy monitoring in commercial and industrial electrical installations
- Retrofitting existing electrical panels for current measurement
- Integration with energy management and power monitoring systems
- Sub-metering for load analysis and energy efficiency projects
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables precise energy monitoring, supporting energy efficiency and reduced power consumption
- Facilitates load analysis for optimized energy usage and lower carbon footprint
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Split Core Type HD Cable 400A x 5A CTR (SCHMETSECT5HD040) is available for immediate purchase. Ideal for commercial and industrial energy monitoring and sub-metering applications.
