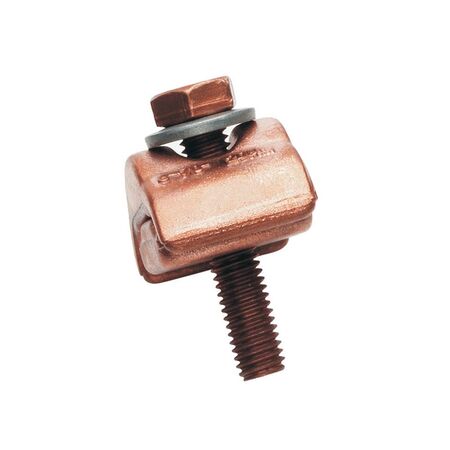

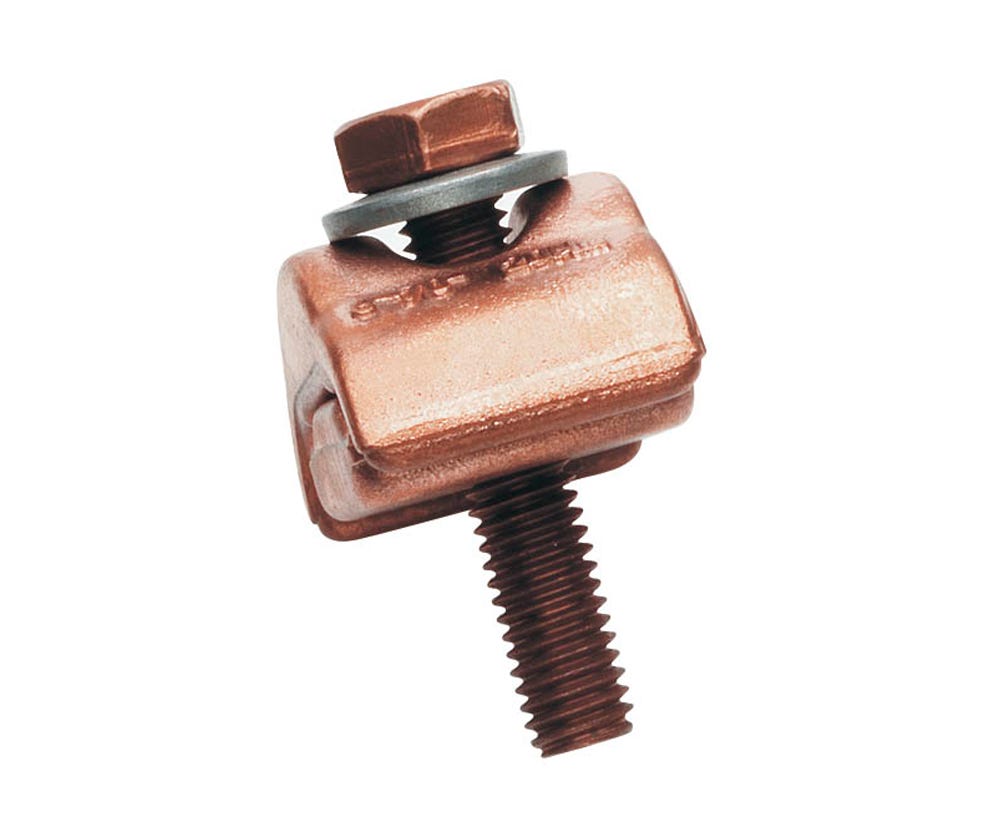

CU Parallel Groove Clamp 10/70 | 99.95% Pure Copper | Forged for High Strength | Slotted Holes for Adjustment | @EA of 1 | by Cabac
The CU Parallel Groove Clamp 10/70 is designed for reliable electrical power distribution, made from 99.95% pure copper for excellent conductivity and corrosion resistance. With slotted holes for easy adjustment, this forged clamp ensures a secure fit for hard drawn or annealed copper conductors, making it ideal for overhead power lines and electrical infrastructure applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CU Parallel Groove Clamp 10/70 | 99.95% Pure Copper | Forged for High Strength | Slotted Holes for Adjustment | @EA of 1 | by Cabac
Brand: Cabac
SKU: CUPG10/70
Alternatively Known As: Copper Parallel Groove Clamp, CU PG Clamp, Electrical Copper Clamp, Power Line Clamp
Technical Specifications
- Material: 99.95% pure copper
- Type: Parallel groove clamp
- Conductor compatibility: Hard drawn or annealed copper conductors
- Adjustment: Slotted holes for conductor size flexibility
- Manufacturing: Forged for high strength
- Dimensions (H x L x W): 30mm x 100mm x 70mm
- Weight: 0.5 kg
Key Features
- Forged, not extruded, for high strength and durability
- Slotted holes for easy adjustment to fit conductors on each side
- Made from 99.95% pure copper for excellent conductivity and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrical professional to ensure compliance with safety standards and proper conductor connection.
Applications
- Electrical power distribution for tapping or jointing copper conductors
- Used in overhead power lines and electrical infrastructure
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from recyclable 99.95% pure copper, supporting sustainable material use
- Durable forged construction reduces need for frequent replacements
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac CU Parallel Groove Clamp 10/70 1xSSM8 AF13 is available for immediate purchase, ideal for electrical power distribution and overhead line applications.
