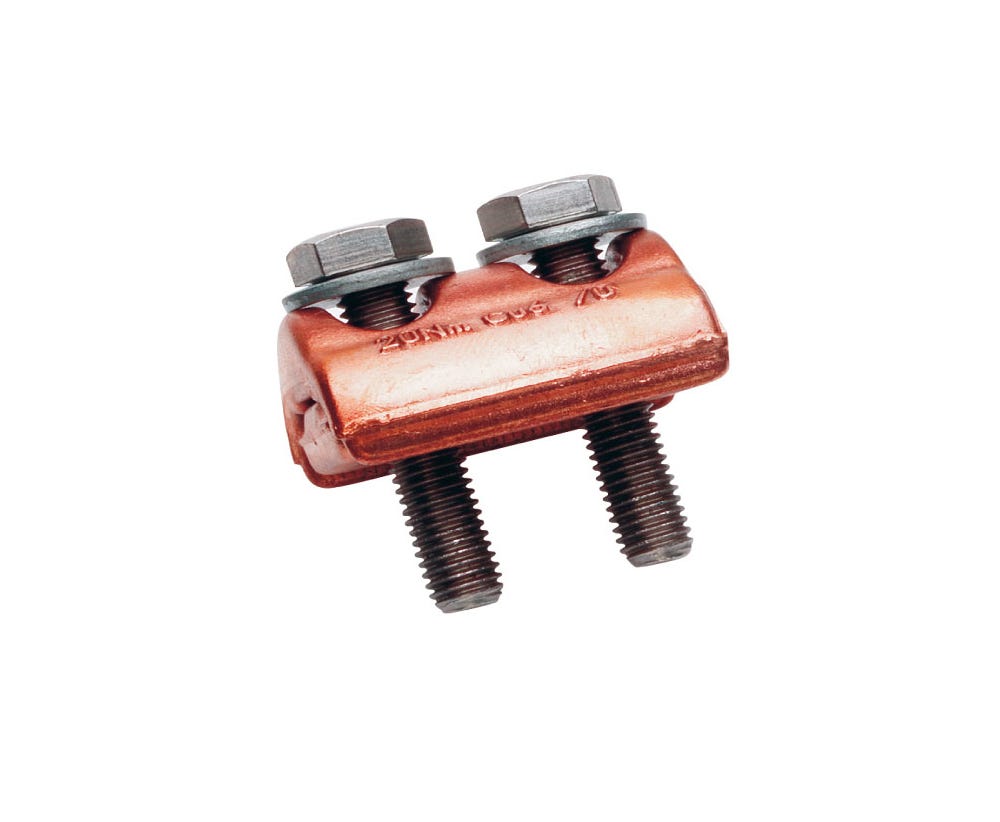

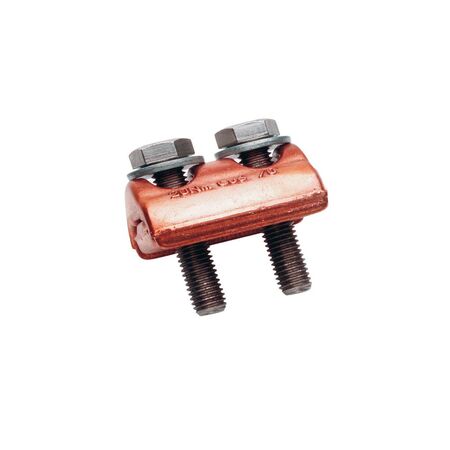

CU Parallel Groove Clamp 16/150 | 99.95% Pure Copper | AF17 Wrench Size | @Each of 1 | by Cabac
The CU Parallel Groove Clamp 16/150 is designed for tapping or jointing hard drawn or annealed copper conductors. Made from 99.95% pure copper, this clamp ensures excellent conductivity and corrosion resistance, making it ideal for electrical power distribution systems. With slotted holes for easy adjustment and a forged design for high strength, it's perfect for utility and industrial electrical installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: CU Parallel Groove Clamp 16/150 | 99.95% Pure Copper | AF17 Wrench Size | @Each of 1 | by Cabac
Brand: Cabac
SKU: CUPG16/150-2B
Alternatively Known As: Copper Parallel Groove Clamp, Copper PG Clamp, Electrical Copper Clamp, Copper Conductor Clamp
Technical Specifications
- Material: 99.95% pure copper
- Clamp Type: Parallel groove clamp
- Bolt Size: 2x M10
- Wrench Size: AF17
- Suitable for: Hard drawn or annealed copper conductors
- Manufacturing: Forged for high strength
- Adjustability: Slotted holes for conductor adjustment
- Dimensions (H x L x W): 50mm x 150mm x 150mm
- Weight: 0.5 kg
Key Features
- Used for tapping or jointing hard drawn or annealed copper conductors
- Forged, not extruded, to create a high strength clamp
- Slotted holes allow adjustment for conductors on each side
- Made from 99.95% pure copper for excellent conductivity and corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper conductor jointing.
Applications
- Electrical power distribution systems
- Tapping or jointing hard drawn or annealed copper conductors
- Utility and industrial electrical installations
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Made from high purity copper which is recyclable and environmentally friendly
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; typically 1 year against manufacturing defects.
Available Now
The Cabac CU Parallel Groove Clamp 16/150 2xM10 AF17 is available for immediate purchase, ideal for electrical power distribution and copper conductor jointing applications.
