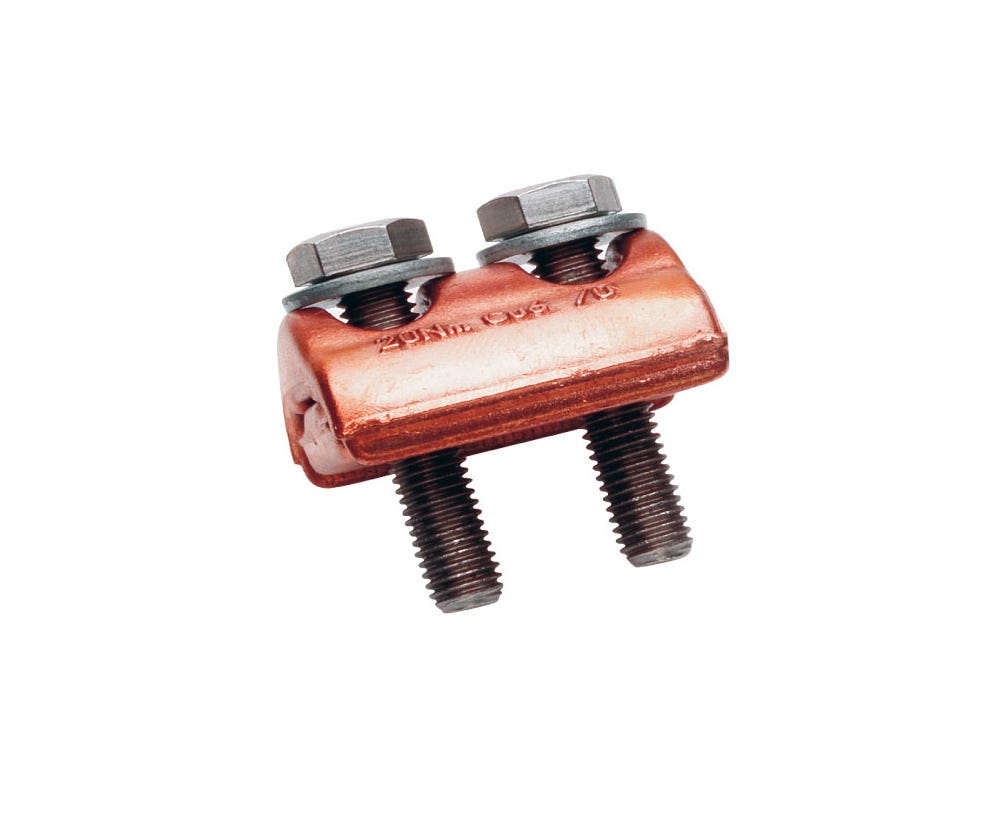

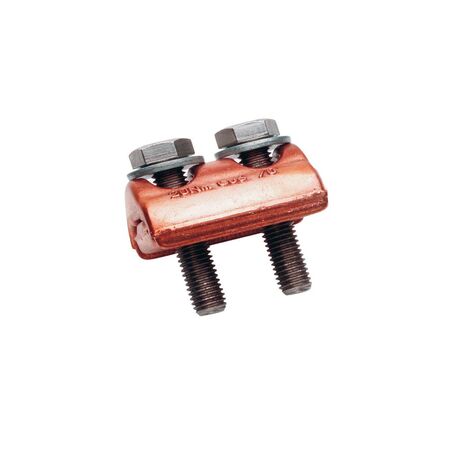

CU Parallel Groove Clamp 6 70 2xM8 AF13 99.95% Pure Copper Adjustable Slotted Holes Cabac

BRAND: CABAC
SKU: CUPG6/70-2B
$39.70 List price: $53.00
1 EA ($39.70 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
The CU Parallel Groove Clamp 6 70 2xM8 AF13 is designed for efficient tapping or jointing of hard drawn or annealed copper conductors.
Technical Specifications
  • Material: 99.95% pure copper
  • Clamp Type: Parallel groove clamp
  • Bolt Size: 2x M8
  • Adjustable slotted holes for conductor size flexibility
  • Suitable for hard drawn or annealed copper conductors
  • Dimensions (H x L x W): 30mm x 100mm x 70mm
  • Weight: 0.3 kg
Key Features
  • Used for tapping or jointing hard drawn or annealed copper conductors
  • Forged, not extruded, to create a high strength clamp
  • Slotted holes allow adjustment for conductors on each side
  • Made from 99.95% pure copper for excellent conductivity and corrosion resistance
Professional Installation Requirements
  • Installation should be performed by a qualified electrician to ensure proper conductor connection and compliance with electrical safety standards.
Applications
  • Electrical power distribution: Tapping or jointing copper conductors
  • Utility and industrial electrical installations
  • Overhead power line connections
Standards & Compliance
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Made from recyclable 99.95% pure copper, supporting sustainable material use
  • Durable design reduces need for frequent replacements, minimizing waste
Warranty Information

Standard manufacturer warranty applies; typically 1 year against manufacturing defects.

Available Now

The Cabac CU Parallel Groove Clamp 6/70 2xM8 AF13 is available for immediate purchase, ideal for electrical power distribution and utility applications.
