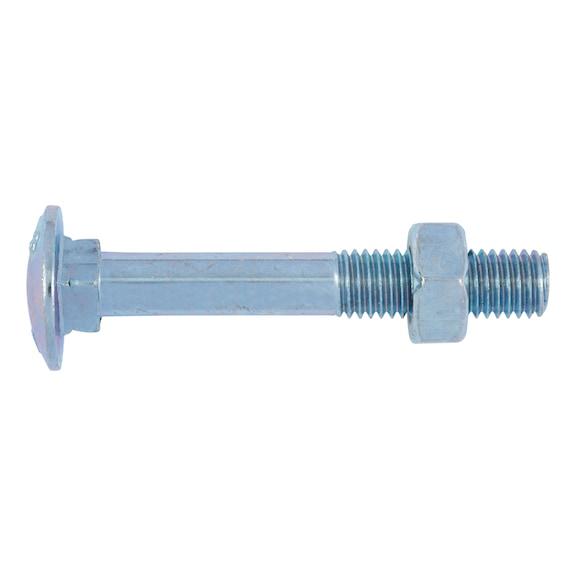

Cup Head Square Neck Bolt M6 | Zinc Plated | DIN 603 Compliant | by Wurth
The Cup Head Square Neck Bolt M6 is designed for secure fastening in mechanical assemblies, featuring a durable zinc plating for corrosion resistance. Ideal for construction and automotive applications, this bolt complies with DIN 603 standards, ensuring reliability and safety in various industrial settings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cup Head Square Neck Bolt M6 | Zinc Plated | DIN 603 Compliant | by Wurth
Brand: Wurth
SKU: 223635
Alternatively Known As: Cup Head Square Neck Bolt, M6 Zinc Plated Bolt, Metric Thread Bolt, DIN 603 Bolt
Technical Specifications
- Thread type x nominal diameter (d1): M6
- Length (l1): 35 mm
- Material: Steel
- Property class: 4.8
- Surface: Zinc plated
- Head diameter (dk): 16.55 mm
- Head height (k1): 3.88 mm
- Square width (V): 6.48 mm
- Square height (f): 4.6 mm
- Standards: DIN 603
- RoHS-compliant: Yes
- Design: With nut
- Head type: Cup head square neck
- Thread type: Metric thread
- Pitch: 1 mm
- Thread form: Standard metric thread
- Thread length (metric thread) (b): 18 mm
- Product class: C
- Dimensions (H x L x W): 3.88mm x 35mm x 16.55mm
- Weight: 0.1 kg
Key Features
- Flat square neck fixes the round head screw in a slot allowing tightening from the nut side without counter-tensioning
- Made of steel with zinc plating for corrosion resistance
- Cup head with square neck design for secure fit
- Complies with DIN 603 standard
- RoHS-compliant
Professional Installation Requirements
- Installation by a qualified technician or tradesperson is recommended to ensure proper fastening and safety.
Applications
- Mechanical assemblies requiring secure fastening
- Construction and manufacturing industries
- Automotive and machinery repairs
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth M6 Zinc Plated Cup Head Square Neck Bolt 35mm is available for immediate purchase, ideal for industrial, construction, and mechanical fastening applications.
