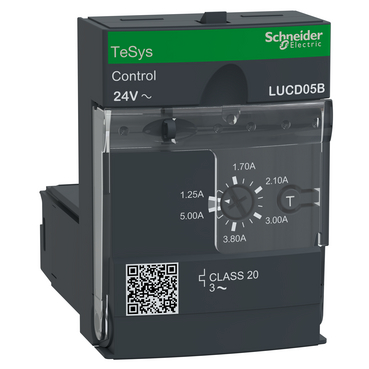

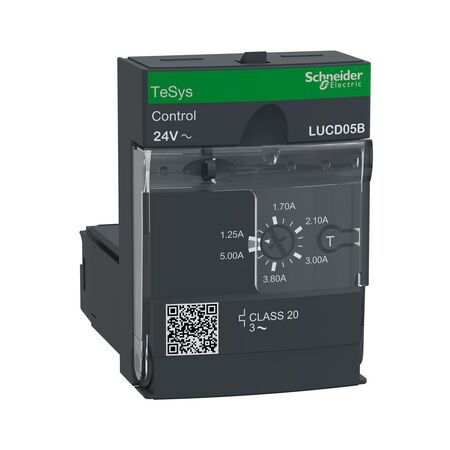

Current Control Relay 1.25-5A 24VAC | Adjustable Range | LED Status Indication | DIN Rail Mountable | @Pack of 1 | by Clipsal
The Current Control Relay 1.25-5A 24VAC is designed for reliable overload protection and current monitoring in HVAC systems and industrial automation. With an adjustable current range from 1.25A to 5A and LED status indication, it ensures optimal performance and easy diagnostics. Ideal for licensed electricians, this compact DIN rail mountable relay is perfect for building management systems and lighting control circuits.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Control Relay 1.25-5A 24VAC | Adjustable Range | LED Status Indication | DIN Rail Mountable | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHLUCD05B
Alternatively Known As: Current Control Relay, Overload Relay 24VAC, Adjustable Current Relay, Clipsal SCHLUCD05B, Current Monitoring Relay
Technical Specifications
- Current Range: 1.25A to 5A adjustable
- Supply Voltage: 24VAC
- Mounting: DIN rail
- Status Indication: LED
- Response Time: <200ms
- Operating Temperature: -20°C to +60°C
- Contact Output: 1 x SPDT relay
- Dimensions (H x L x W): 90mm x 65mm x 35mm
- Weight: 0.25 kg
Key Features
- Adjustable current range from 1.25A to 5A
- Operates on 24VAC supply voltage
- Compact DIN rail mountable design
- Reliable overload and current monitoring
- LED status indication for easy diagnostics
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 wiring rules and local regulations.
Applications
- HVAC systems
- Industrial automation panels
- Building management systems
- Lighting control circuits
- Motor protection and control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Prevents equipment damage and reduces energy waste by ensuring optimal current usage.
- Supports efficient operation of building automation systems, contributing to energy savings.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Advanced Control 1.25-5A 24VAC (SCHLUCD05B) is available for immediate purchase. Ideal for industrial, commercial, and building automation applications requiring reliable current monitoring and protection.
