Current Monitoring Relay 0.1-51A | 24-48V AC/DC | Int-Shunt by NHP
Current monitoring relay with 0.1-51A range and 24-48V AC/DC compatibility—ideal for industrial and commercial electrical systems. Built for over/under current detection, with adjustable delay and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

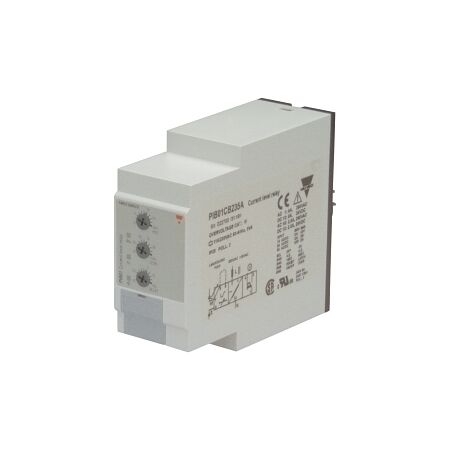

Product Name/Title: Carlo Gavazzi Monitoring Relay Over or Under Current via Int-Shunt 0.1-51A AC DC and 24-48V ACDC 1CO
Brand: NHP
SKU: PIB01CD485A
Alternatively Known As: Current Monitoring Relay, Over/Under Current Relay
Technical Specifications
- Current measuring range: 0.1-5 A
- Rated frequency: 45-65 Hz
- Rated control supply voltage: 24-48 V AC/DC
- Number of contacts: 1 change-over contact
- Over voltage category: III
- Degree of protection: IP20
- Material contact: Silver tin-oxide
- Dimensions (H x L x W): 80mm x 94mm x 36mm
- Weight: 0.15 kg
Key Features
- Monitoring relay for over or under current detection.
- Single-phase under and over current capabilities.
- External current transformer compatible.
- Adjustable delay on energization time.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment monitoring
- Commercial: Electrical systems protection
- General: Any application requiring current monitoring
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design helps in reducing power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay Over or Under Current is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable current monitoring.
