Current Monitoring Relay | 6-150mVACDC | 115-230V AC | Ext-Shunt by NHP
Current monitoring relay with 6-150mVACDC range and 115-230V AC supply—ideal for industrial and commercial applications. Built for over and under current detection, with adjustable delay for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

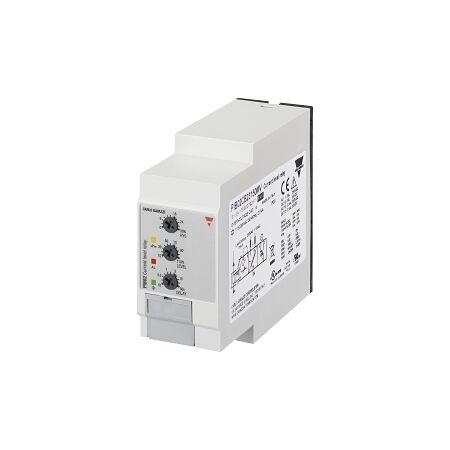

Product Name/Title: Carlo Gavazzi Monitoring Relay Over or Under Current via Ext-Shunt 6-150mVACDC and 115-230V AC 1 CO
Brand: NHP
SKU: PIB02CB23150MV
Alternatively Known As: Current Monitoring Relay, Over/Under Current Relay
Technical Specifications
- Current Measuring Range: 0.01-0.15 A
- Rated Frequency: 45-65 Hz
- Rated Operation Current (IE): 8 A
- Control Supply Voltage: 115 V AC / 230 V AC
- Degree of Protection: IP20
- Material Contact: Silver tin-oxide
- Min Adjustable Delay on Energization Time: 1 s
- Max Permitted Delay on Energization Time: 6 s
- Dimensions (H x L x W): 80mm x 94mm x 36mm
- Weight: 0.15 kg
Key Features
- Monitoring relay for over and under current detection.
- Single-phase operation with adjustable delay on energization.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Monitoring electrical systems for over or under current conditions.
- Commercial: Ensuring safety in electrical installations.
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation safety.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of damage and energy waste.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Carlo Gavazzi Monitoring Relay Over or Under Current is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
