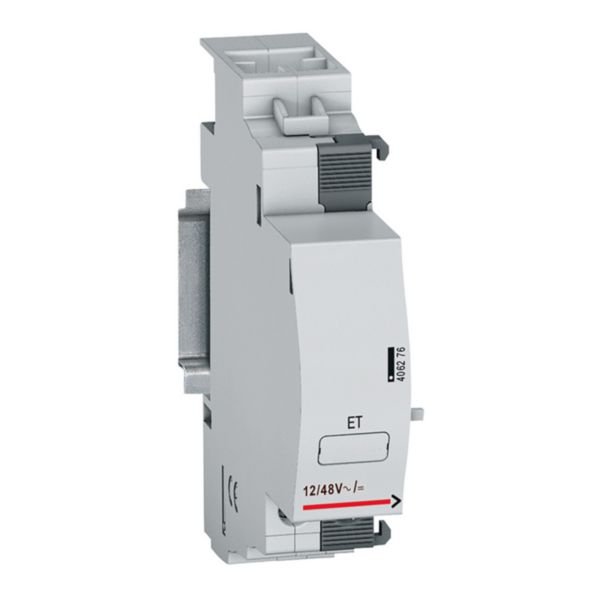

Current Shunt Trip DX³ | 12 to 48 V AC/DC | Universal Fitting | 1 Module Wide | @EA of 1 | by Legrand
The Current Shunt Trip DX³ operates on 12 to 48 V AC or DC, making it ideal for enhancing safety in electrical switchboards and power cabinets. With a universal fitting and a 1 module wide design, this shunt release function is perfect for power circuit breakers, ensuring reliable operation and easy installation without tools.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Shunt Trip DX³ | 12 to 48 V AC/DC | Universal Fitting | 1 Module Wide | @EA of 1 | by Legrand
Brand: Legrand
SKU: 406276
Alternatively Known As: Shunt Trip Module, Remote Trip Unit, DX3 Shunt Trip, Circuit Breaker Shunt Release
Technical Specifications
- Device fitting: Universal
- Function: Shunt release for power circuit breaker
- Width: 1 modular spacing
- Number of change-over contacts: 1
- Rated switch current: 6 A
- Rated voltage: 48 V AC/DC
- Suitable for max number of poles main contact unit: 4
- Suitable for max current main contact unit: 125 A
- No fault-signal switches
- No normally open or normally closed contacts
- Dimensions (H x L x W): 80mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- 1 module wide design
- Operates on 12 to 48 V AC or DC
- Universal device fitting
- Shunt release function for power circuit breakers
- No tool required for joining with main device
- Allows insertion of supply busbar from top side
- Compatible with up to 4 poles main contact unit
- Rated switch current of 6 A
- Rated voltage of 48 V AC/DC
- Includes 1 change-over contact
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical safety standards and proper integration with circuit breakers.
Applications
- Used with MCBs, RCBOs, RCCBs, isolating switches, and remote trip isolating switches
- Suitable for electrical switchboards and power cabinets
- Compatible with TX3 and DX3 ranges for circuit protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enhances electrical safety reducing risk of faults and electrical fires
- Supports energy-efficient circuit protection by enabling remote disconnection
Warranty Information
Legrand offers a standard 2-year warranty covering manufacturing defects.
Available Now
The Legrand Current Shunt Trip DX³ 12 to 48 V AC/DC is available for immediate purchase, ideal for enhancing safety and control in electrical switchboards and power cabinets.
