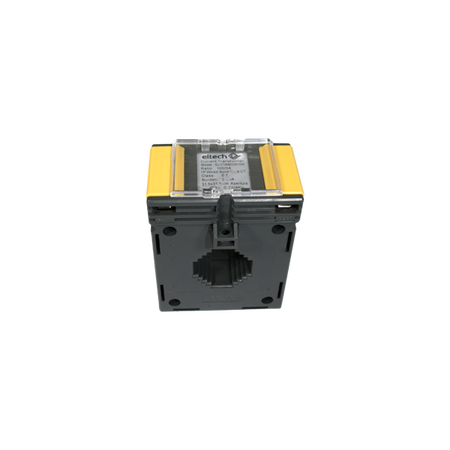

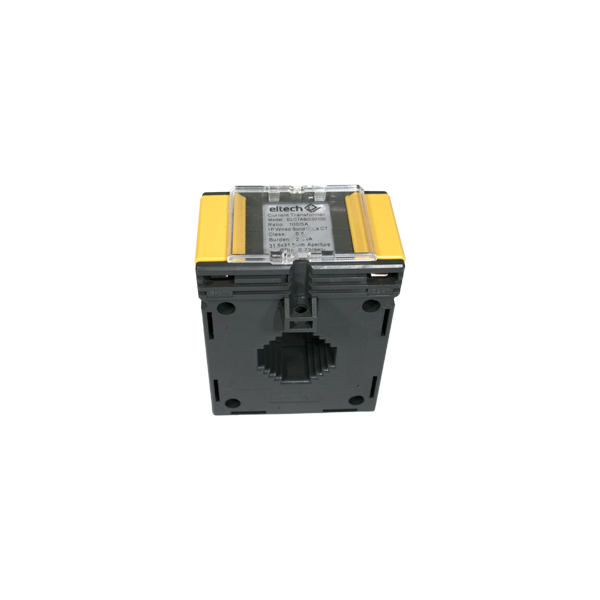

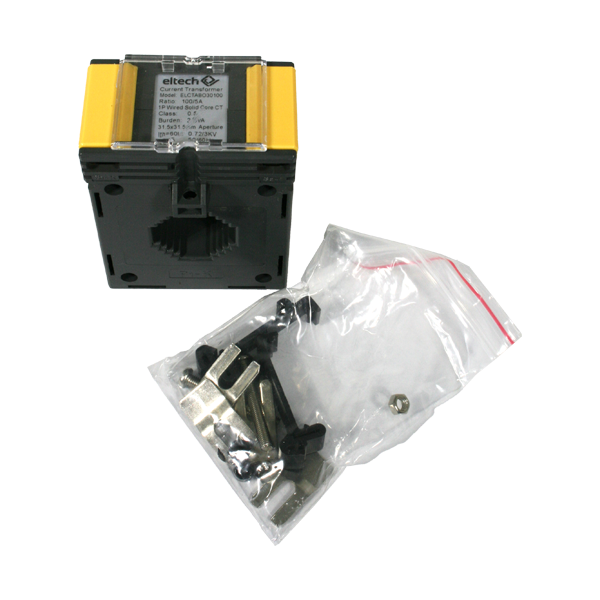

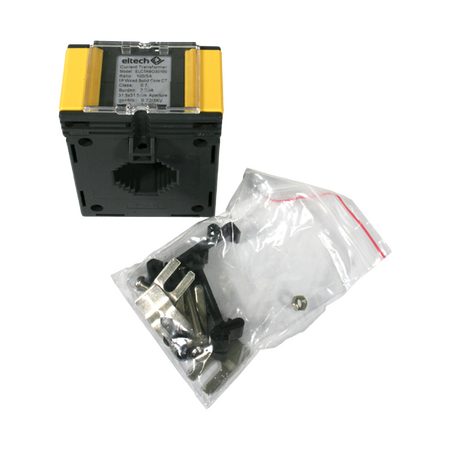

Current Transformer 100/5A 1P Wired Solid Core | Class 0.5S Accuracy | 31.5mm Aperture by Eltech
Current transformer with 100A primary and 5A secondary current—ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, featuring a solid core design and Class 0.5S accuracy for precise measurements.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 100/5A 1P Wired Solid Core CT Class 0.5S 31.5 x 31.5mm Aperture
Brand: Eltech
SKU: ELCTABO30100
Alternatively Known As: Current Transformer 100A, CT 100/5A, Solid Core CT, Class 0.5S CT
Technical Specifications
- Type: Single phase (1P) wired solid core current transformer
- Accuracy Class: 0.5S
- Primary Current: 100A
- Secondary Current: 5A
- Aperture Size: 31.5 x 31.5mm
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 31.5 x 31.5mm aperture suitable for various cable sizes
- Rated for 100A primary current
Professional Installation Requirements
- Installation by a qualified electrician is recommended to ensure safety and compliance with electrical standards.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring to reduce power wastage
- Supports accurate measurement for improved electrical system management
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for specific warranty details.
Available Now
The Eltech 100/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality monitoring and electrical metering applications.
