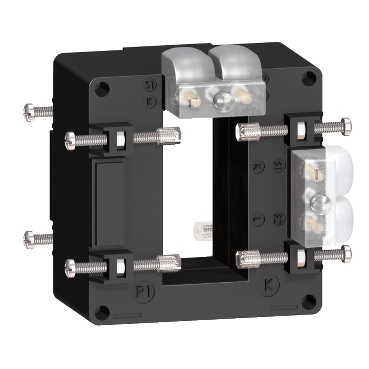

Current Transformer 1000/5A | Dual Output | Tropicalised Insulation | 32x65 mm Busbar | @Each of 1 | by Clipsal
The Current Transformer 1000/5A is designed for reliable current measurement in industrial and commercial applications. Featuring dual output terminals and tropicalised insulation, it excels in high humidity environments, making it ideal for electrical switchboards and power distribution panels. With an accuracy class of 1.0, this transformer ensures precise metering for energy management systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Transformer 1000/5A | Dual Output | Tropicalised Insulation | 32x65 mm Busbar | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5DA100
Alternatively Known As: Current Transformer 1000/5A, Dual Output CT, Clipsal CT for 32x65 Busbar, SCHMETSECT5DA100, Industrial Current Transformer
Technical Specifications
- Primary Current: 1000A
- Secondary Current: 5A
- Dual output terminals
- Suitable for busbars: 32x65 mm
- Tropicalised insulation for high humidity environments
- Accuracy Class: 1.0
- Frequency: 50/60Hz
- Operating Temperature: -10°C to +55°C
- Dimensions (H x L x W): 120mm x 150mm x 70mm
- Weight: 2.5 kg
Key Features
- Tropicalised current transformer for enhanced durability in humid environments
- Dual output for versatile metering and protection applications
- Designed for busbars sized 32x65 mm
- High accuracy for reliable current measurement
- Robust construction for long service life
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations and standards.
Applications
- Electrical switchboards
- Industrial power distribution panels
- Commercial metering installations
- Energy management systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring and management
- Supports reduction of energy waste through accurate metering
- Durable design reduces replacement frequency and electronic waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
The Clipsal CT Tropi.1000 5 Dual Output Bars 32x65 (SCHMETSECT5DA100) is available for immediate purchase. Ideal for industrial and commercial switchboard applications requiring reliable current measurement.
