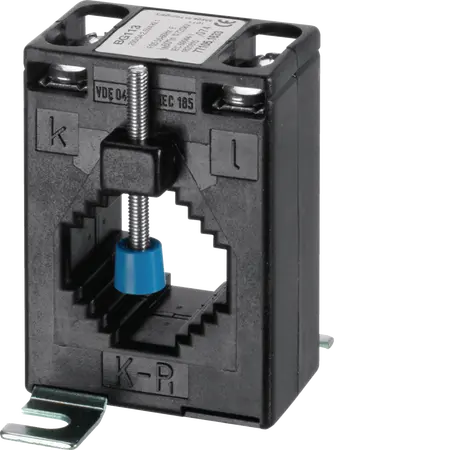

Bar/Cable-through Current Transformer BG 113 200/5A 2,5VA Class 1

Current Transformer 200/5A | 2.5VA Class 1 | DIN Rail Mount | -40 to 40°C by Hager

BRAND: :hager

SKU: SRA02005

$74.30 List price: $95.00

+ −

30 Days Return Delivery Options

Current transformer with 200/5A rating and 2.5VA power—ideal for industrial and commercial energy monitoring. Built for precision with Class 1 accuracy and versatile DIN rail or plate mounting.

Description
Attachments

Product Name/Title: Bar/Cable-through Current Transformer BG 113 200/5A 2,5VA Class 1

Brand: Hager

SKU: SRA02005

Alternatively Known As: Current Transformer, CT, Bar Current Transformer, Cable-through Current Transformer

Technical Specifications

Power: 2.50 VA
Total power loss under IN: 2.20 W
Frequency: 50 - 60 Hz
Ingress Protection (IP) class: IP10
Max. intensity of primary: 200 A
Max. intensity of secondary: 5 A
Mounting: DIN rail or mounting plate
Dimensions (H x L x W): 70mm x 30mm x 50mm
Weight: 0.5 kg

Key Features

Accuracy class 1 for precise measurements.
Rated insulation voltage of 3000 V.
Operating temperature range of -40 to 40 °C.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Power monitoring and management
Commercial: Energy efficiency applications
General: Electrical installations requiring current measurement

Standards & Compliance

Complies with AS/NZS 60950 for safety of IT and communication equipment.

Environmental Benefits

RoHS and REACH compliant, contributing to reduced environmental impact.

Warranty Information

2 years warranty against manufacturing defects.

Available Now

The Bar/Cable-through Current Transformer BG 113 200/5A 2,5VA Class 1 is available now for immediate purchase. Ideal for industrial and commercial applications requiring accurate current measurement.

SRA02005 (SRA02005, 196 Kb) [Download]

reach_declaration_SRA02005.pdf (reach_declaration_SRA02005.pdf, 103 Kb) [Download]

rohs_declaration_SRA02005.pdf (rohs_declaration_SRA02005.pdf, 104 Kb) [Download]

(CURRENTTRANSFORMERS.pdf, 238 Kb) [Download]

(DECLARATION_22_3436_12_22.pdf, 581 Kb) [Download]
