Home/Electrical/Connection/Metering Accessories/Current Transformers & Associated Equipment/Current Transformer 250/5 | Tropicalised DIN Mount | IP20 Rated | Clipsal

Trade Discount 33%

PowerLogic, Current transformer tropicalised, DIN mount 250 5 for bars 10x40 20x32 25x25

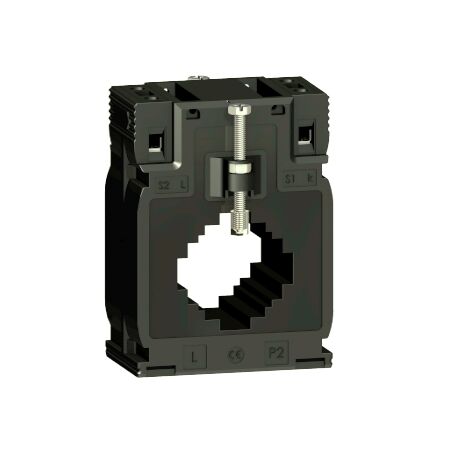

Current Transformer 250/5 | Tropicalised DIN Mount | IP20 Rated | Clipsal

BRAND: Clipsal

SKU: METSECT5MC025

$84.30 List price: $126.40

+ −

30 Days Return Delivery Options

Current transformer with 250/5 ratio and tropicalised design—ideal for industrial and commercial power monitoring. Built for durability in harsh environments, with flexible installation on various bar sizes.

Description
Attachments

Product Name/Title: PowerLogic, Current transformer tropicalised, DIN mount 250 5 for bars 10x40 20x32 25x25

Brand: Clipsal

SKU: METSECT5MC025

Alternatively Known As: Current Transformer, Busbar Current Transformer, Power Monitoring Transformer

Technical Specifications

Rated operational voltage: < 720 V AC 50/60 Hz
Mounting mode: DIN rail, clip-on with insulated locking screw
Electrical insulation class: Class B
IP Rating: IP20
Relative humidity: 0...95 %
Ambient air temperature for operation: -25...60 °C
Current transformer ratio: 250/5
Dynamic withstand current: 2.5 Ith
Rated insulation voltage: 3 kV
Rated impulse withstand voltage: 3 kV
Dimensions (H x L x W): 95mm x 65mm x 70mm
Weight: 0.375 kg

Key Features

Tropicalised design for durability in harsh environments.
Rated current of 250 A with a secondary current rating of 5 A.
Compatible with various bar sizes for flexible installation.
Accuracy class 0.5 and 1 for reliable performance.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal safety.

Applications

Industrial: Busbar and cable applications
Commercial: Power monitoring and management

Standards & Compliance

Complies with VDE 0414 and IEC 61869-2 standards.

Environmental Benefits

Designed to operate in a wide temperature range and high humidity, reducing the need for frequent replacements.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Clipsal PowerLogic Current Transformer Tropicalised DIN Mount 250/5 is available now for immediate purchase. Ideal for industrial and commercial power monitoring applications.

METSECT5MC025 (METSECT5MC025, 234 Kb) [Download]
