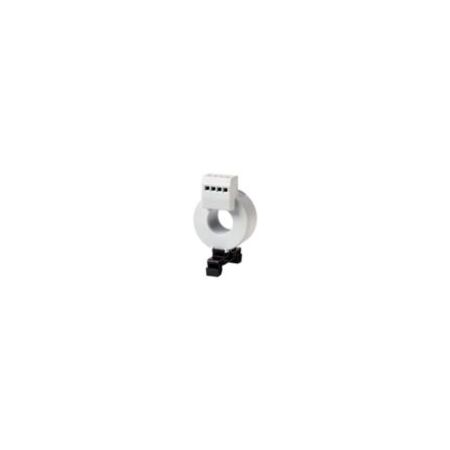

Current Transformer 30mm Inner Diameter | 690V AC | DIN Rail Mounting & RoHS Compliant by Eaton
The PFR-W-30 current transformer features a 30mm inner diameter and is rated for 690V AC, making it ideal for earth-leakage circuit-breakers and electrical safety systems. Designed for use with NZM1/2/3/4 frames, it includes a fixing clip for easy DIN rail mounting and is RoHS compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Transformer 30mm Inner Diameter | 690V AC | DIN Rail Mounting & RoHS Compliant by Eaton
Brand: Eaton
SKU: Y7-285559
Alternatively Known As: NZM Current Transformer, Earth Leakage Current Transformer, Eaton PFR-W-30 CT, DIN Rail Current Transformer
Technical Specifications
- Voltage rating: 690 V AC 50/60 Hz
- Transformer opening diameter: 30 mm
- Mounting method: Includes fixing clip for DIN-rail mounting
- Frame compatibility: NZM1/2/3/4
- Power on-delay time: 0 ms
- Rated control supply voltage (Us): 0 V (AC and DC)
- Voltage rating of relay contact: 690 V (50/60 Hz)
- Rated fault current: 0 A
- Type: Accessory for earth-fault releases and voltage release
- Special features: Not UL/CSA approved, designed for use with PFR residual current relay
- Dimensions (H x L x W): 45mm x 80mm x 80mm
- Weight: 0.092 kg
Key Features
- Inner diameter of 30 mm for current transformer
- Designed for use with NZM1/2/3/4 frames
- Includes fixing clip for DIN-rail mounting
- Voltage rating up to 690 V AC 50/60 Hz
- Compatible with PFR residual current relay
- RoHS compliant and IEC certified
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with electrical safety standards and switchgear assembly.
Applications
- Used with earth-leakage circuit-breakers for current measurement and protection
- Suitable for integration in electrical switchgear panels
- Ideal for industrial and commercial electrical safety systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS compliant, ensuring reduced hazardous substances in manufacturing
- Supports electrical safety systems that prevent energy waste and electrical faults
Warranty Information
Warranty details available upon request from Eaton; typically includes coverage against manufacturing defects.
Available Now
The Eaton Moeller NZM Current Transformer PFR-W-30 is available for immediate purchase, ideal for electrical safety and protection applications in industrial and commercial settings.
