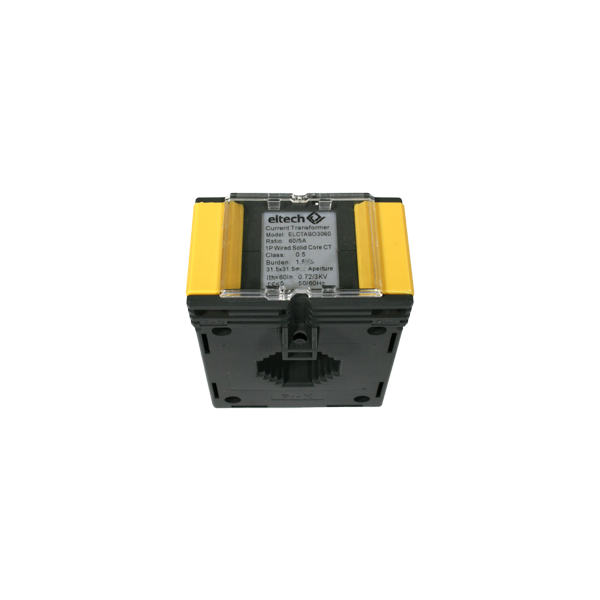

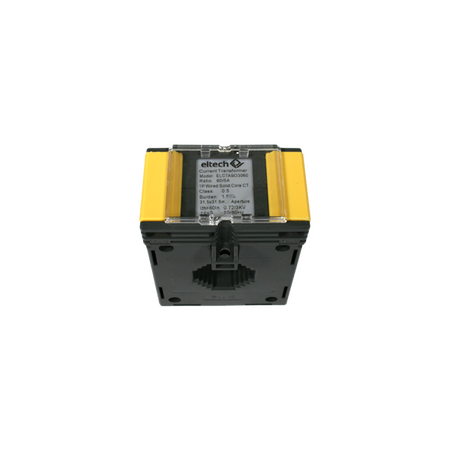

Current Transformer 60/5A 1P Wired Solid Core | Class 0.5S Accuracy | 31.5mm Aperture by Eltech
This 60/5A 1P wired solid core current transformer features Class 0.5S accuracy and a 31.5mm aperture, making it ideal for power quality monitoring and electrical metering. Built for industrial and commercial systems, it ensures precise current measurement and compliance with AS/NZS 60044.1 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 60/5A 1P Wired Solid Core CT Class 0.5S 31.5 x 31.5mm Aperture
Brand: Eltech
SKU: ELCTABO3060
Alternatively Known As: Current Transformer 60/5A, CT 60A Solid Core, 1P Wired CT, Class 0.5S Current Transformer
Technical Specifications
- Primary Current: 60A
- Secondary Current: 5A
- Accuracy Class: 0.5S
- Core Type: Solid Core
- Aperture Size: 31.5 x 31.5mm
- Phase: Single (1P)
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.3 kg
Key Features
- Single phase (1P) wired solid core design
- Class 0.5S accuracy for precise current measurement
- 31.5 x 31.5mm aperture suitable for various conductor sizes
- Rated for 60A primary current
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure safety and accuracy.
Applications
- Power quality monitoring
- Electrical metering and protection
- Industrial and commercial electrical systems
Standards & Compliance
- Complies with AS/NZS 60044.1 – Instrument Transformers
Environmental Benefits
- Enables accurate energy monitoring to optimize power usage and reduce waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Eltech for detailed warranty terms.
Available Now
The Eltech 60/5A 1P Wired Solid Core Current Transformer is available now for immediate purchase. Ideal for power quality and electrical metering applications.
