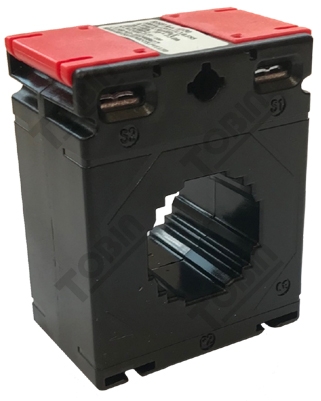

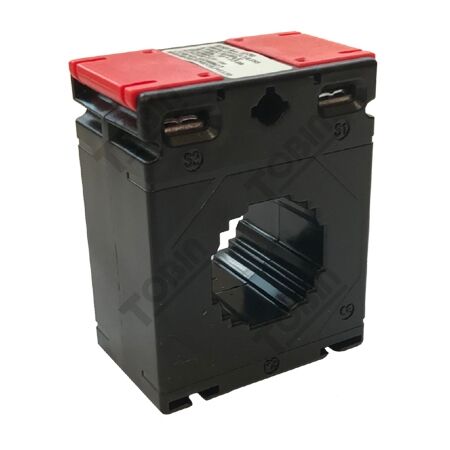

Current Transformer 75/5 Class 1 | 1.5VA Burden | Accurate Measurement | by Tobin
The Current Transformer 75/5 Class 1 is designed for precise electrical metering and monitoring, featuring a 75/5 current transformation ratio and a 1.5VA burden rating for low power loss. Ideal for industrial and commercial power systems, this transformer ensures compliance with AS/NZS 3000 standards, making it perfect for energy management and protection relay applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Transformer 75/5 Class 1 | 1.5VA Burden | Accurate Measurement | by Tobin
Brand: Tobin
SKU: RCT1-75
Alternatively Known As: Current Transformer 75/5, CT 75/5, Electrical Current Transformer, Metering CT
Technical Specifications
- Current Ratio: 75/5 A
- Accuracy Class: 1
- Burden: 1.5VA
- Frequency: 50/60 Hz
- Insulation Level: Suitable for standard electrical installations
- Dimensions (H x L x W): 80mm x 40mm x 60mm
- Weight: 0.5 kg
Key Features
- Class 1 accuracy for precise current measurement
- Rated 75/5 current transformation ratio
- 1.5VA burden rating for low power loss
Professional Installation Requirements
- Installation by a qualified electrician is required to ensure safety and compliance with electrical standards.
Applications
- Electrical metering and monitoring in industrial and commercial power systems
- Energy management and power quality analysis
- Protection relay input for electrical circuits
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Enables efficient energy monitoring to reduce power wastage
- Supports accurate billing and energy management
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Tobin Current Transformer 75/5 Class 1 1.5VA is available now for immediate purchase. Ideal for electrical metering and protection applications in industrial and commercial settings.
