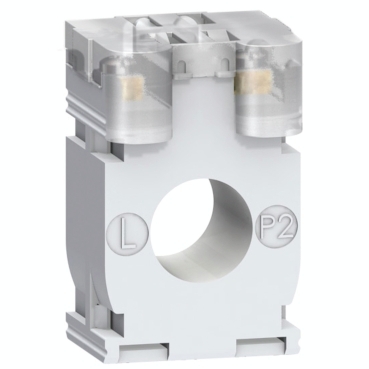

Current Transformer DIN Rail Mount | 5 Cable Capacity | 40A Primary Current | Tropicalized Design | @Pack of 1 | by Clipsal
The Current Transformer DIN Rail Mount is designed for efficient energy monitoring, accommodating up to 5 cables with a 21mm diameter each. With a primary current rating of 40A and high accuracy class of 1.0, it's perfect for electrical distribution panels and commercial metering installations. Built for tropical environments, this compact transformer ensures reliable performance in high humidity conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Current Transformer DIN Rail Mount | 5 Cable Capacity | 40A Primary Current | Tropicalized Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHMETSECT5CC004
Alternatively Known As: Clipsal Current Transformer, DIN Rail CT, SCHMETSECT5CC004, 5 Cable Current Transformer, Clipsal CT DIN 40
Technical Specifications
- Type: Current Transformer (CT)
- Mounting: DIN rail
- Cable Capacity: Up to 5 cables, 21mm diameter each
- Primary Current: 40A
- Accuracy Class: 1.0
- Operating Temperature: -5°C to +50°C
- Insulation Voltage: 0.72/3kV
- Frequency: 50/60Hz
- Tropicalized for high humidity environments
- Dimensions (H x L x W): 90mm x 40mm x 60mm
- Weight: 0.8 kg
Key Features
- DIN rail mountable current transformer
- Accommodates up to 5 cables with 21mm diameter
- High accuracy for reliable current measurement
- Compact design for easy installation in panels
- Suitable for tropical environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with local electrical regulations.
Applications
- Electrical distribution panels
- Industrial switchboards
- Commercial metering installations
- Energy management systems
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Enables efficient energy monitoring and management
- Supports reduction of energy waste through accurate metering
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal CT Tropi DIN 40 5 Cables D.21 (SCHMETSECT5CC004) is available for immediate purchase. Ideal for electrical distribution panels and commercial metering applications.
