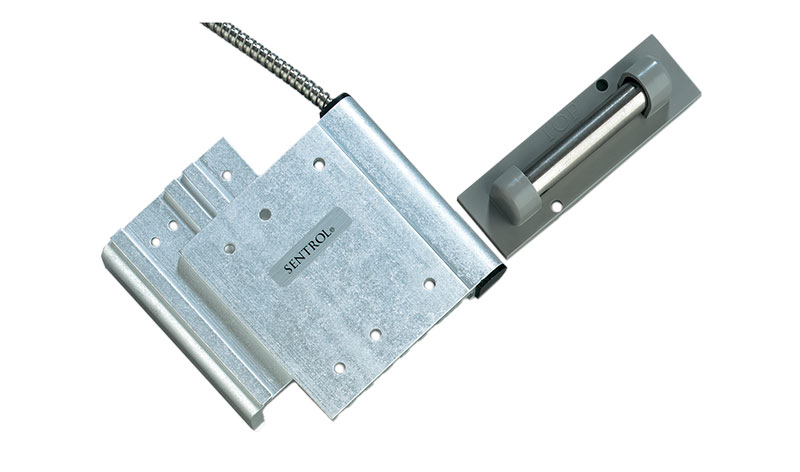

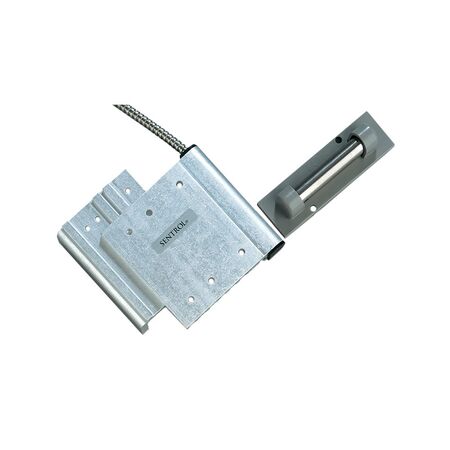

Curtain Door Mount Reed Switch 20mm Gap Hardwired Tecom
Tecom curtain door mount reed switch features a 20mm gap, hardwired connection and durable plastic. Ideal for door contacts in alarm systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Magnetic Door Contact, Curtain Door Reed Switch, Hardwired Alarm Door Contact, Overhead Door Magnetic Contact
Technical Specifications
- Switch Type: Magnetic reed switch
- Operating Gap: 20 mm
- Connection: Hardwired
- Housing Material: Durable plastic
- Mounting Type: Curtain door mount
- Intended Use: Door position monitoring in alarm and access control systems
- Dimensions (H x L x W): 10mm x 60mm x 15mm
- Weight: 0.1 kg
Key Features
- 20 mm operating gap for curtain and sliding door applications
- Hardwired connection for reliable alarm panel integration
- Durable plastic housing for indoor security installations
- Suitable for residential and commercial door monitoring
- Passive magnetic switching requires no local power supply
Professional Installation Requirements
- Installation should be performed by a qualified security technician or electrician. Connect to the alarm or access control panel in accordance with the panel manufacturer's wiring requirements and verify magnet alignment before commissioning.
Applications
- Curtain door intrusion detection
- Sliding and overhead door monitoring
- Residential alarm systems
- Commercial security systems
- Access control door-status monitoring
Standards & Compliance
- AS/NZS 2201.5:2008 - relevant to the design, installation and commissioning of intruder alarm systems
- AS 2201.3:1991 Section 4.10 - magnetic reed switch door-contact requirements referenced in Australian security installation specifications
Environmental Benefits
- Low-power passive operation reduces energy consumption during normal use
- Durable housing can support longer service life and reduce replacement waste
- Compact construction uses relatively little material compared with powered door-monitoring devices
Warranty Information
No Tecom-specific warranty period was located. Warranty is subject to the supplying distributor's terms and applicable Australian Consumer Law guarantees.
Available Now
Available through Tecom security product channels and authorised Australian security-system distributors, subject to current distributor stock.
