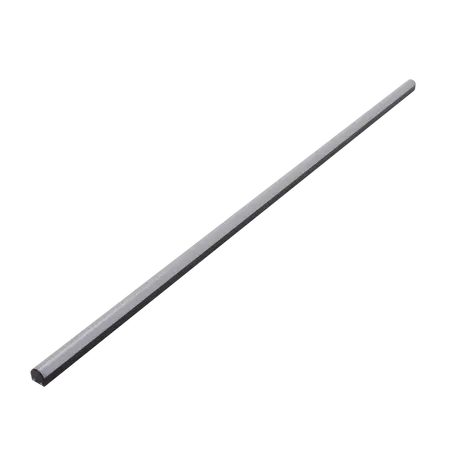

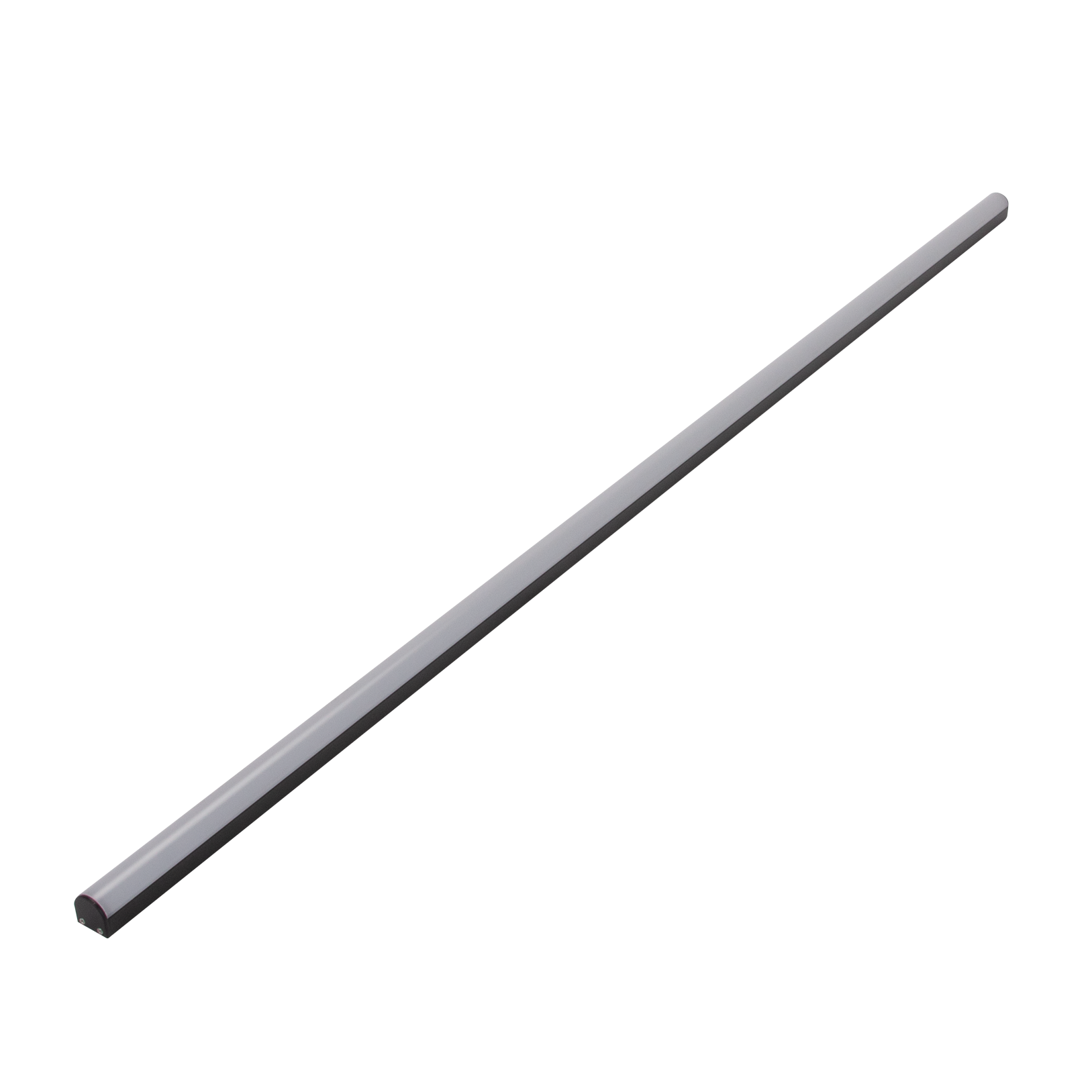

Curve-20 Surface Mount LED Profile 20x20mm Black 3m Length Domus
Domus Curve-20 surface mount aluminium LED strip profile, 20x20mm, black, 3m length.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-1919R-SM, CURVE-20-SM, Curve-20 Round Diffuser LED Profile, Surface Mount Aluminium LED Channel
- Material: Extruded aluminium 6063 profile
- Diffuser: Curved opal PMMA
- Finish Colour: Black
- Profile Size: 19.7 mm wide x 19.6 mm high
- Length: 3000 mm
- Mounting: Surface, wall or suspended mounting
- Ingress Protection: IP20
- Compatible LED Strip Loads: 7.2 W/m, 14.4 W/m and 19.2 W/m
- Driver: Remote driver required; not included
- Accessories: Mounting clips, end caps and suspension accessories available separately
- Dimensions (H x L x W): 19.6mm x 3000mm x 19.7mm
- Weight: 1 kg
- Conceals LED strip lighting for a clean architectural finish
- Curved opal diffuser provides smooth, uniform light output
- Aluminium housing helps keep LED strip lighting linear and assists heat dissipation
- Protects LED strips from dust, vapours and foreign objects
- Suitable for surface, wall or suspended mounting
- Designed for use with Domus LED strip lighting
- Black finish for discreet integration with dark joinery and architectural interiors
- The profile itself is a passive component and does not require specialist installation. Any associated LED strip, remote driver or mains electrical connection should be installed by a licensed electrician in accordance with applicable installation requirements.
- Under-cabinet and joinery lighting
- Shelving and storage-area lighting
- Bathroom and vanity lighting in suitable indoor locations
- Living rooms and dining areas
- Architectural and commercial interior lighting
- Linear accent and decorative LED strip installations
- Aluminium construction is durable and widely recyclable
- The aluminium profile assists LED heat management, which can help extend LED strip service life
- Replaceable LED strips allow the profile to remain in service without replacing the complete lighting channel
- Protecting the LED strip from contaminants can reduce premature component failure and waste
12-month replacement warranty under Domus Lighting’s current policy for products not otherwise listed in its warranty-duration table. Warranty eligibility requires purchase through an authorised distributor, installation in accordance with instructions and, where applicable, installation by a licensed electrician.
Available through Domus Lighting and authorised Australian distributors, subject to distributor stock.
