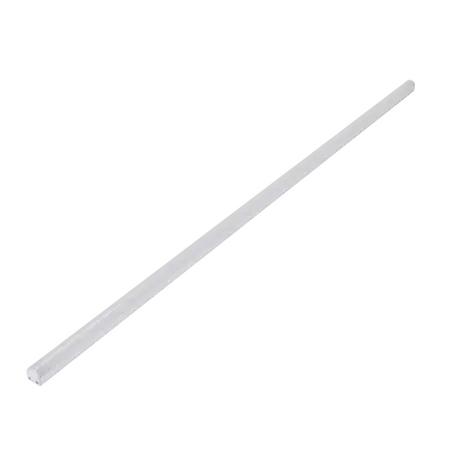

Curve-20 Surface Mount LED Profile 20x20mm White 3m Length Domus
Domus Curve-20 surface mount aluminium LED strip profile, 20x20mm, white, 3m length.
Sign in
Please login to continue to your account.
Alternatively Known As: LP-1919R-SM-3M, Curve-20-SM, LED strip mounting profile, aluminium LED channel, surface-mounted LED extrusion
- Model: LP-1919R-SM-3M
- Material: Extruded aluminium profile with opal PMMA diffuser
- Finish: White
- Diffuser Type: Opal
- Profile Size: 19.7 mm wide x 19.6 mm high
- Installation: Surface, wall or suspended mounted
- Protection Rating: IP20
- Length: 3 metres
- Compatibility: Domus LED strip lighting range
- Dimensions (H x L x W): 19.6mm x 3000mm x 19.7mm
- Weight: 0.36 kg
- Conceals LED strip lighting for a clean architectural finish
- Opal diffuser provides smooth, uniform linear light output
- Aluminium construction assists profile rigidity and heat dissipation
- Protects LED strips from dust, vapours and foreign objects
- Suitable for surface, wall or suspended mounting
- Designed for residential and commercial interior applications
- Architectural linear lighting
- Shelving and storage areas
- Bathrooms and vanity areas
- Living rooms and dining rooms
- Cabinet and joinery lighting
- Residential and commercial interior lighting installations
- Aluminium is durable and widely recyclable at end of service life
- Protecting the LED strip from foreign objects and vapours can help extend service life and reduce replacement waste
- Supports the use of efficient LED lighting systems
Domus Lighting's standard warranty applies. Products not specifically listed in the current warranty schedule are covered by a 12-month replacement warranty, subject to the manufacturer's conditions and installation requirements.
Available through Domus Lighting's authorised Australian distributors, lighting stores, electrical wholesalers and online retailers.
