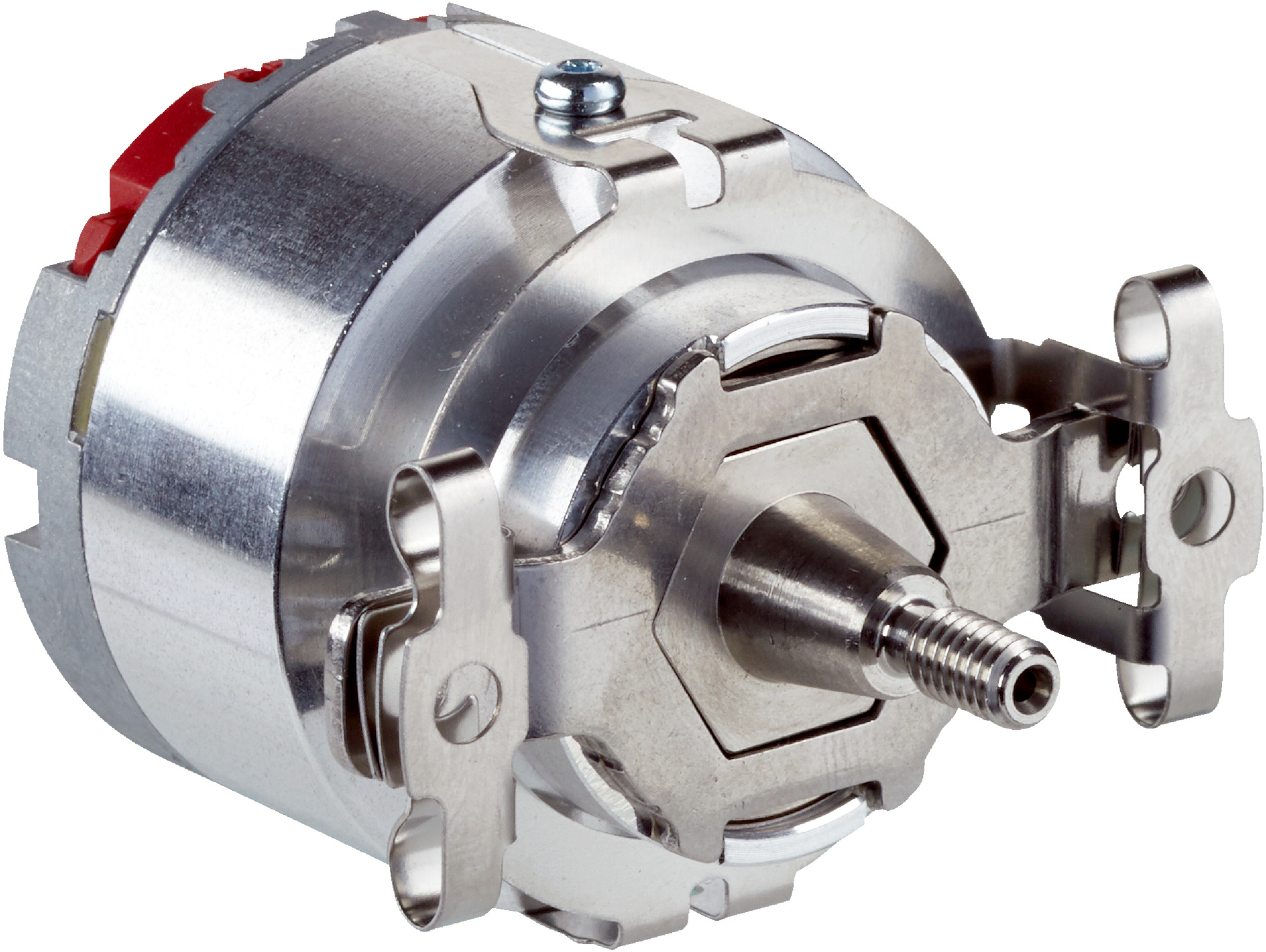

Customized Stator Coupling Encoder | SIL2 Safety Level | 18 Bit Resolution | Optical Measurement | by SICK
The Customized Stator Coupling Encoder is designed for industrial automation, featuring a SIL2 safety integrity level and 18-bit resolution for precise position measurement. Ideal for safety-critical applications, it operates at speeds up to 9,000 min⁻¹ and offers robust optical measurement capabilities, ensuring high reliability and accuracy in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Safety integrity level: SIL2 (IEC 61508), SILCL2 (EN 62061)
- Category: 3 (EN ISO 13849), Performance Level: PL d
- Position resolution per revolution: 18 bit
- System accuracy: ±120″
- Signal noise (σ): ±4″
- Absolute ascertainable revolutions: 4,096
- Available memory area: 8,192 Byte
- Measurement step per revolution: 1,048,576
- Measurement principle: Optical
- Type of code for absolute value: Binary
- Communication interface: HIPERFACE DSL®
- Supply voltage: 7 V to 12 V, recommended 8 V
- Current consumption: ≤150 mA
- Output frequency for digital position value: 0 kHz to 75 kHz
- Connection type: Male connector, 4-pin
- Shaft version: Tapered shaft
- Operating speed: ≤9,000 min⁻¹
- Angular acceleration: ≤500,000 rad/s²
- Operating temperature range: –20 °C to +115 °C
- Storage temperature range: –40 °C to +125 °C
- Relative humidity: 90%, condensation not permitted
- Resistance to shocks: 100 g, 6 ms
- Resistance to vibrations: 50 g, 10 Hz to 2,000 Hz
- EMC: According to EN 61000-6-2, EN 61000-6-4, IEC 61326-3
- Enclosure rating: IP40 with mating plugs inserted and cover closed
- Operating height: up to 2,000 m
- Dimensions (H x L x W): 36mm x 50mm x 36mm
- Weight: 0.1 kg
Key Features
- Customized stator coupling for specialized applications
- Safety integrity level SIL2 (IEC 61508) and SILCL2 (EN 62061)
- Category 3 (EN ISO 13849) with Performance Level PL d
- Optical measurement principle with 18 bit resolution per revolution
- System accuracy ±120″ and signal noise ±4″
- Absolute ascertainable revolutions: 4,096
- Memory area of 8,192 Byte
- Communication via HIPERFACE DSL® interface
- Operating temperature range from –20 °C to +115 °C
- IP40 enclosure rating with mating plugs inserted and cover closed
- Operating speed up to 9,000 min⁻¹ and angular acceleration up to 500,000 rad/s²
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with safety-related encoder systems and electrical connections to ensure compliance with safety standards.
Applications
- Industrial automation for precise position measurement
- Safety-related applications requiring SIL2 and PL d compliance
- High-speed machinery with up to 9,000 min⁻¹ operating speed
- Environments requiring robust optical measurement with high resolution
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- High reliability and long service life reduce waste and replacement frequency
- Low current consumption (≤150 mA) contributes to energy efficiency
Warranty Information
Warranty details available upon request from SICK; typically includes coverage against manufacturing defects.
Available Now

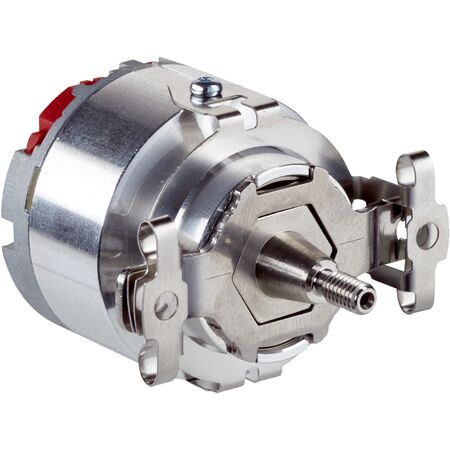

The SICK EKM36-2KF0B0S01 encoder is available for immediate purchase, ideal for industrial automation and safety-critical applications requiring high precision and reliability.
