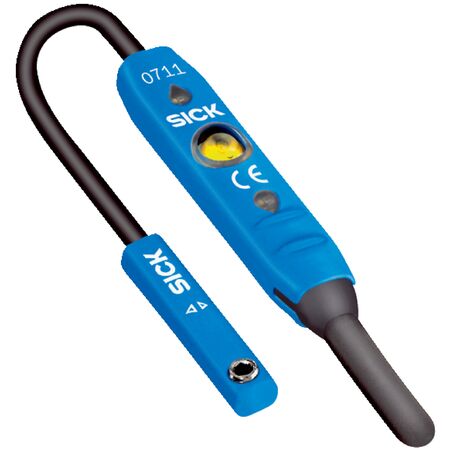

Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | 2 x PNP Outputs | by SICK
The Cylinder Position Sensor is designed for precise detection in industrial automation, featuring a C-slot type compatible with SMC and Bimba cylinders. With a detection zone of 0 mm to 50 mm and two PNP switching outputs, it ensures reliable performance in pneumatic and hydraulic applications. Built for durability with an IP67 rated enclosure, this sensor is perfect for manufacturing process control and robotics.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | 2 x PNP Outputs | by SICK
Brand: SICK
SKU: 1042238
Alternatively Known As: Cylinder Position Sensor, C-slot Cylinder Sensor, SICK Cylinder Sensor, PNP Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m
- Cable diameter: Ø 2.3 mm
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position detection
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and assembly line automation
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CSSPSKP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
