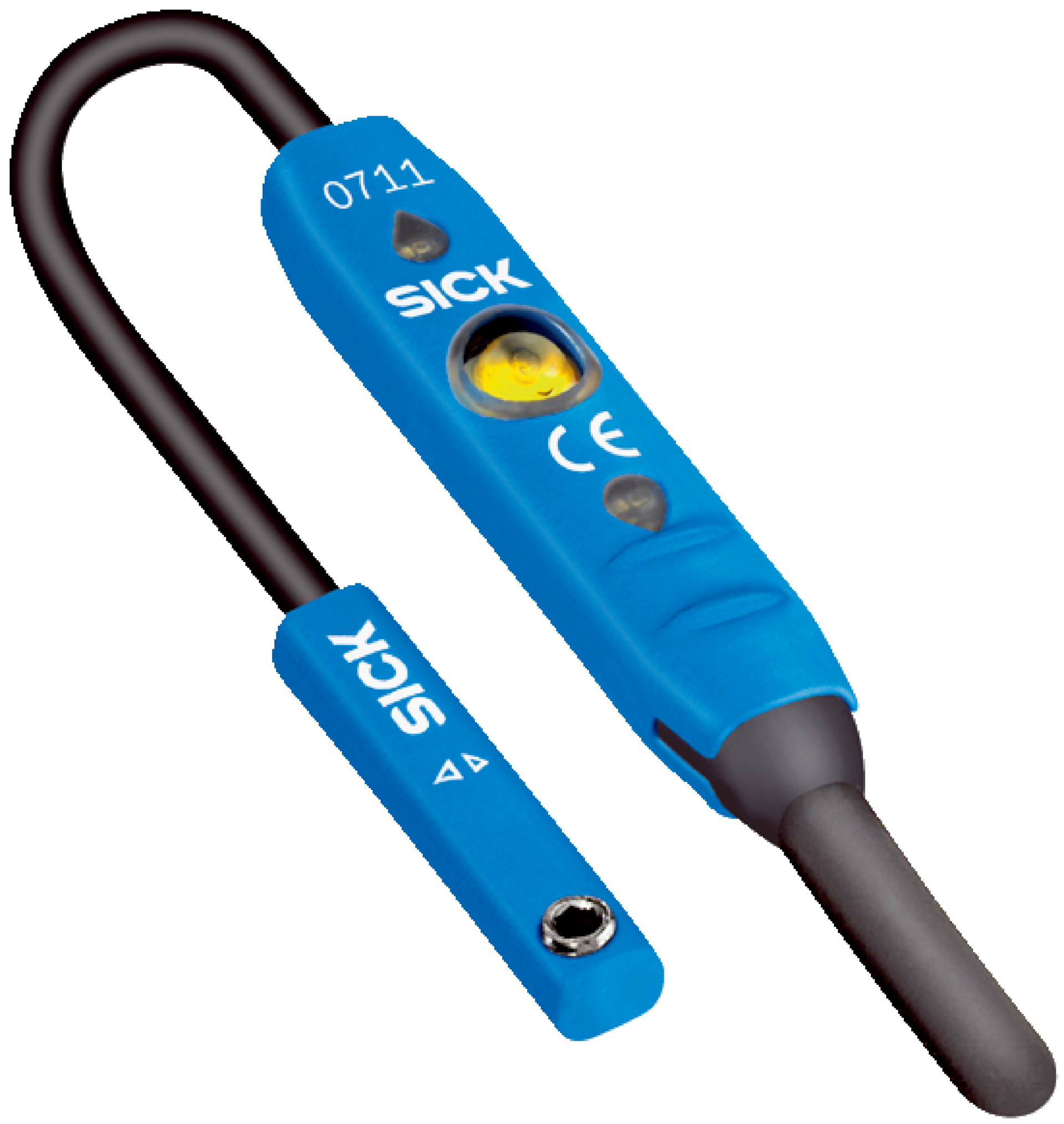

Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise detection in industrial automation, featuring a C-slot type compatible with SMC and Bimba cylinders. With a detection zone of 0 mm to 50 mm and dual NPN switching outputs, it ensures reliable performance in pneumatic cylinder monitoring and manufacturing process control. Built to withstand harsh environments, this sensor is IP67 rated for dust and water protection, making it ideal for robotics and assembly lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | IP67 Rated | by SICK
Brand: SICK
SKU: 1046234
Alternatively Known As: Cylinder Position Sensor, C-slot Cylinder Sensor, Pneumatic Cylinder Sensor, SICK Cylinder Sensor
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x NPN
- Output function: 2 x Normally Open contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typically 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typically 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Operating temperature range: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC compliance: According to EN 60947-5-2
- Connection type: 4-wire cable, 0.1 m length
- Cable diameter: Approximately 2.3 mm
- Housing material: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x NPN switching outputs with 2 x N/O contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CSSNSKUA Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection applications.
