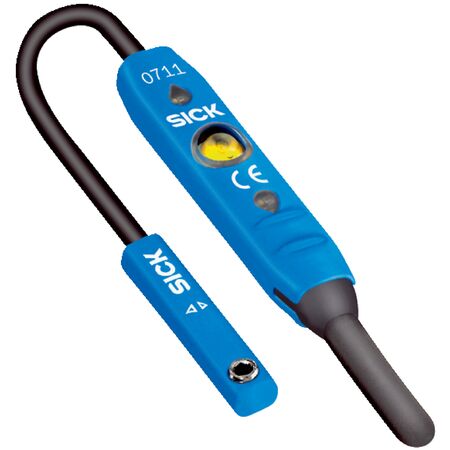

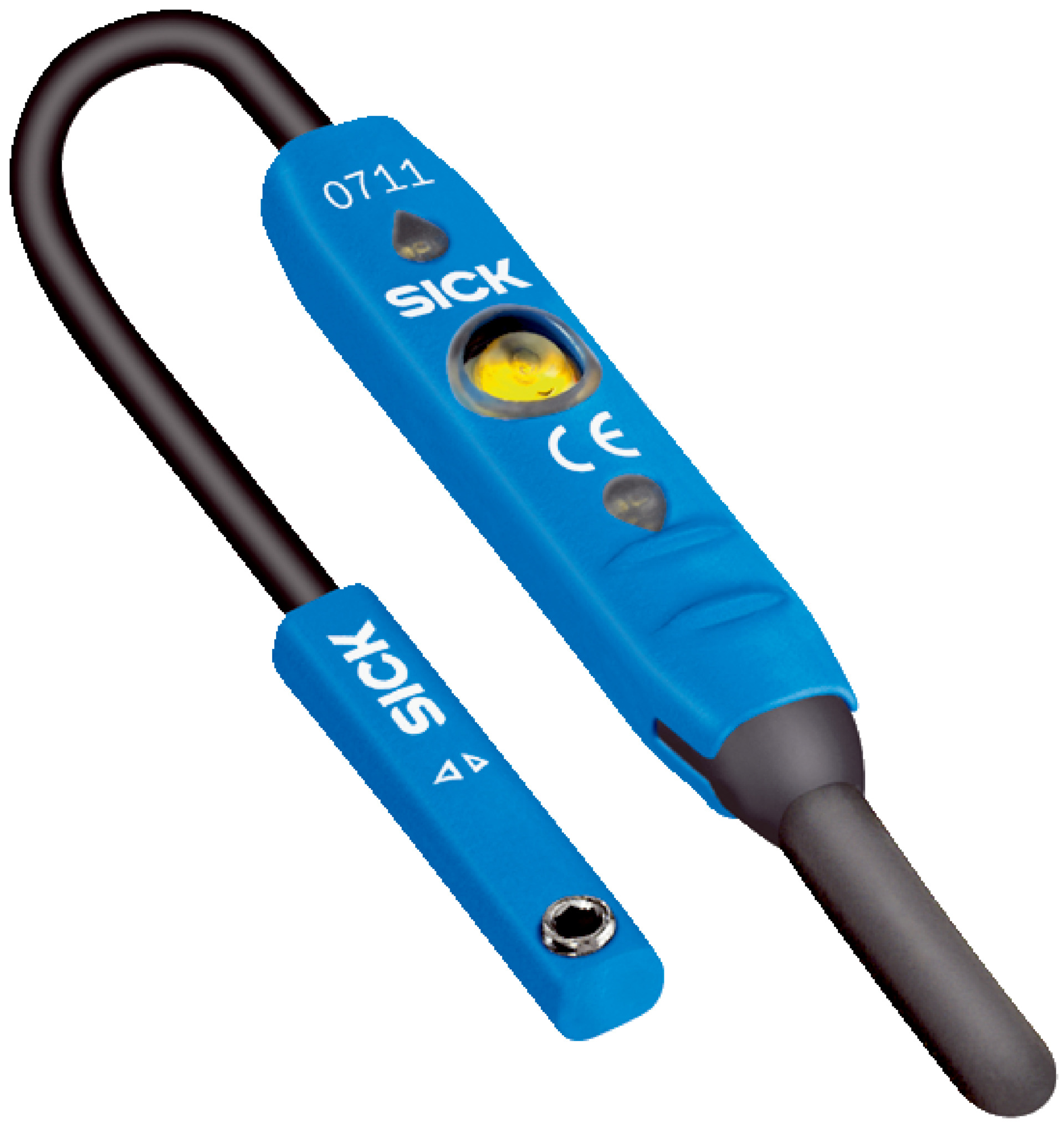

Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise detection in industrial automation, featuring a C-slot type compatible with SMC and Bimba cylinders. With a detection zone of 0 mm to 50 mm and IP67 rated for dust and water protection, it's perfect for pneumatic cylinder monitoring and manufacturing process control, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m, PUR cable
- Cable diameter: Ø 2.3 mm
- Bending radius: Fixed installation > 5 x cable diameter, flexible use > 10 x cable diameter
- Housing material: Plastic
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Configurable hysteresis for precise detection
- Teach-in control panel for easy switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for cylinder position detection
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 20 mA) supports energy efficiency
- Robust design minimizes downtime and resource use
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CSSPSKR0S22 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection applications.
