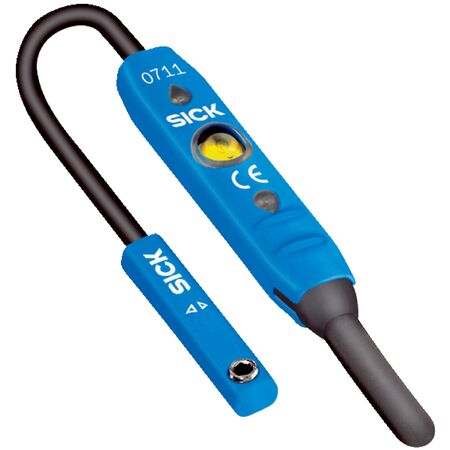

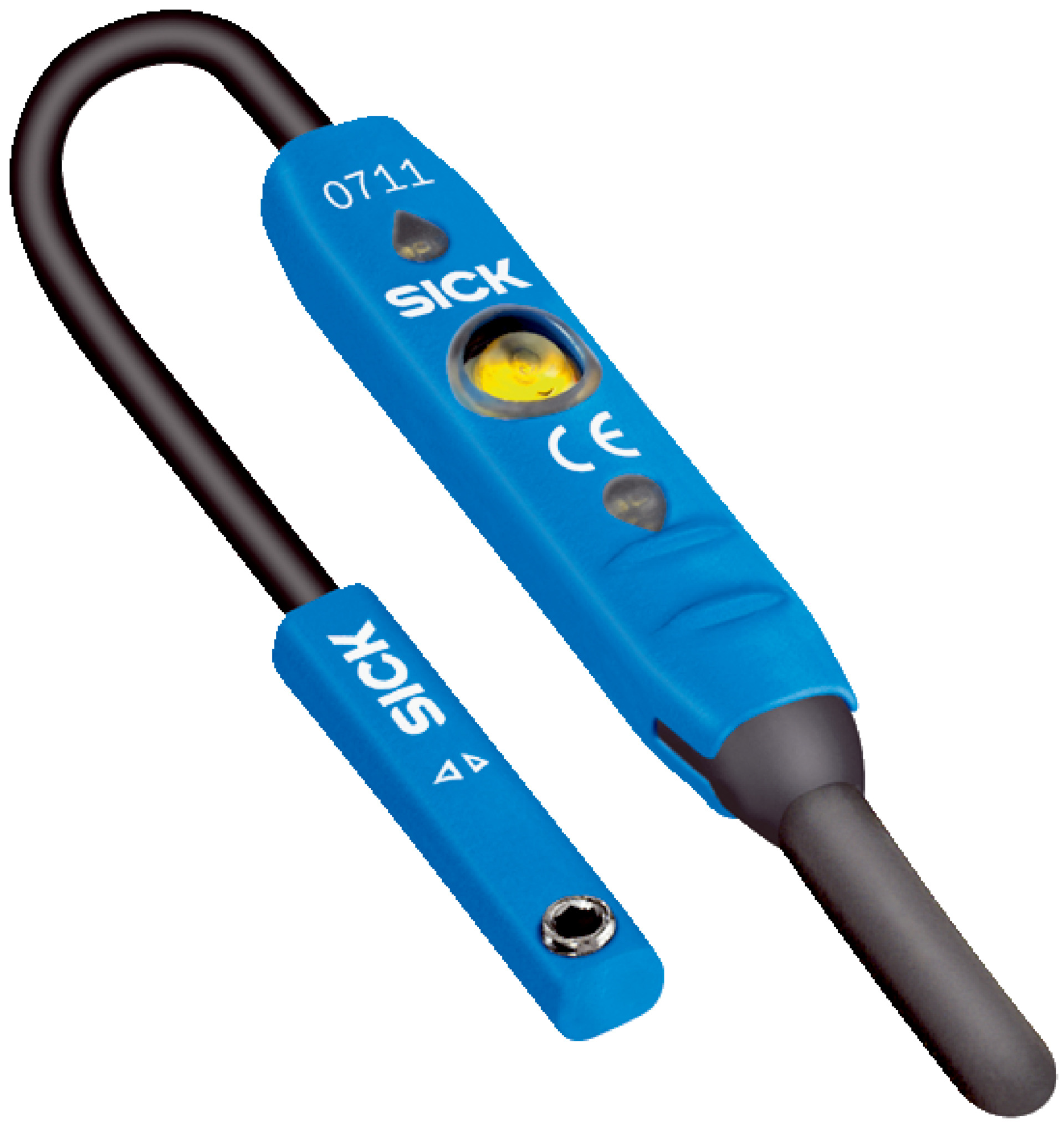

Cylinder Position Sensor | C-Slot Type | 0-50mm Detection Zone | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise detection in industrial automation, featuring a C-slot type compatible with SMC and Bimba cylinders. With a detection zone of 0 mm to 50 mm and IP67 rated for dust and water protection, it's perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator: LED
- Teach-in function: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.3 m
- Cable diameter: Ø 2.3 mm
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba cylinders
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for easy adjustment of switching points
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position detection
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements, minimizing waste
- Low power consumption (typ. 20 mA) supports energy-efficient operation
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZ2Q-CSSPSKR0S25 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position detection applications.
