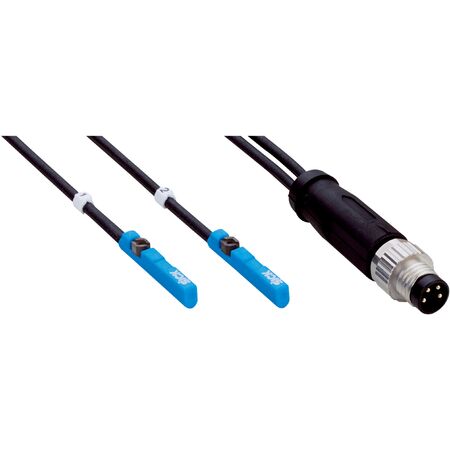

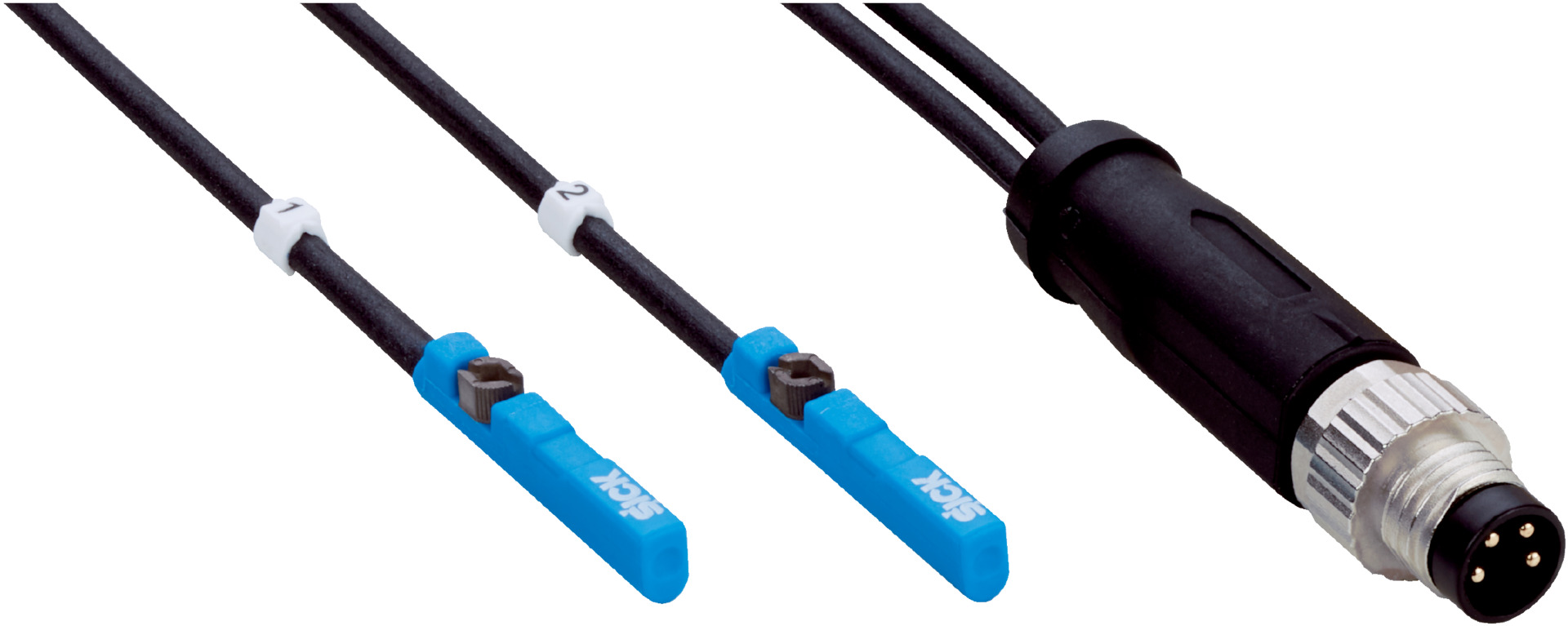

Cylinder Position Sensor | C-Slot Type | Dual PNP Output | IP68 Rated | by SICK
The Cylinder Position Sensor is designed for precise position sensing in industrial automation, featuring a C-slot type compatible with various cylinder adapters. With dual PNP outputs and an impressive switching frequency of 1,000 Hz, this sensor ensures reliable performance in pneumatic cylinder monitoring and factory automation applications. Its robust IP68 rated housing provides excellent dust and water protection, making it ideal for challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible cylinder types with adapter: SMC rail CDQ2, SMC rail ECDQ2, Round body cylinder, Profile cylinders, Tie-rod cylinders
- Housing length: 23.7 mm
- Switching output: 2 x PNP
- Switching frequency: 1,000 Hz
- Output function: 2 x N/O contact
- Electrical wiring: DC 4-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity (typical): 2.2 mT
- Overrun distance (typical): 4 mm
- Hysteresis (typical): ≤ 0.8 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with connector M8, 4-pin, knurled nut, 0.75 m
- Cable specifications: Conductor cross section 0.09 mm², Cable diameter Ø 2.2 mm, Bending radius fixed installation > 2 x cable diameter, flexible use > 5 x cable diameter, Cable outlet axial
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 10mm x 40mm x 24mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder adapters
- Two sensor heads on one plug for dual sensing
- Switching output: 2 x PNP with 2 x N/O contacts
- High switching frequency of 1,000 Hz
- Enclosure rating IP68 for dust and water protection
- Electrical wiring: DC 4-wire
- Status indicator LED for operational feedback
- Reverse polarity, short-circuit, and power-up pulse protection
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic cylinder monitoring
- Factory automation requiring precise switching outputs
- Robotics and mechanical assembly lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP68 rated housing reduces need for frequent replacements
- Low power consumption of 8 mA reduces energy usage
- Robust design minimizes electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC1-2V2PS-KRTS16 sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder sensing applications.
