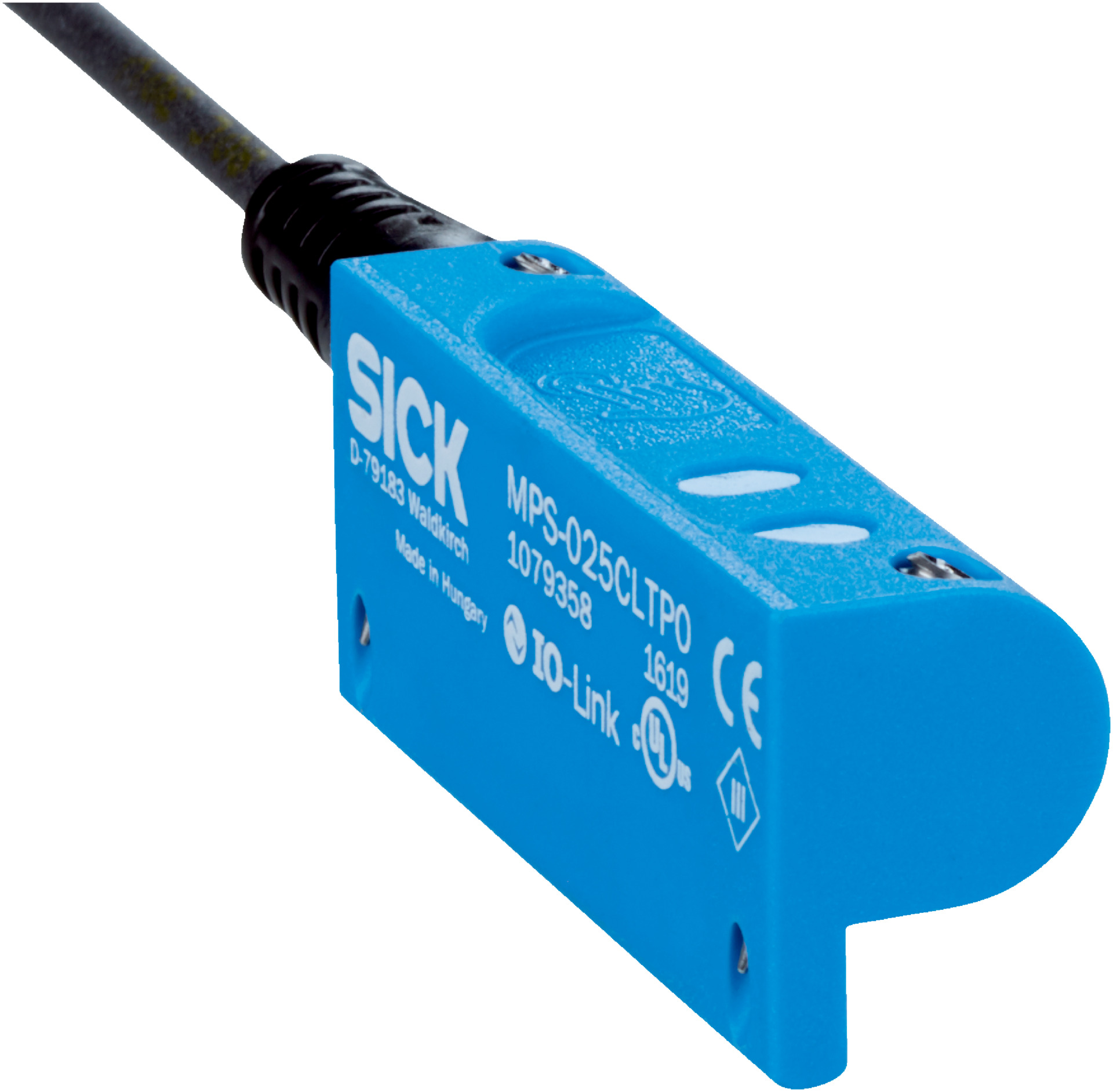

Cylinder Position Sensor | C-slot Compatible | IO-Link V1.1 | IP67 Rated | by SICK
The Cylinder Position Sensor is designed for precise position feedback in industrial automation, featuring a C-slot compatible design and IO-Link V1.1 communication. With a measuring range of 25 mm and high resolution of ≥ 50 µm, it's perfect for pneumatic and hydraulic cylinder monitoring, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Linearity error: 0.3 mm typical
- Repeat accuracy: 0.1 mm typical
- Sampling rate: 1 ms typical
- Connection: Cable with M12 4-pin connector, 0.6 m length
- Cable diameter: 2.6 mm, PUR material
- Communication interface: IO-Link V1.1, COM3
- Process data length: 16 Bit
- Process data structure includes switching signals and position data
- Dimensions (H x L x W): 15mm x 41mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 25 mm with high resolution ≥ 50 µm
- Push-pull switching output with PNP/NPN options
- Analog output options: 0 V to 10 V voltage or 4 mA to 20 mA current
- IO-Link V1.1 communication interface with 1 ms cycle time
- IP67 rated enclosure for robust protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Wide ambient operating temperature range from –20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link integration.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable IP67 housing reduces environmental impact by extending product lifespan
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now

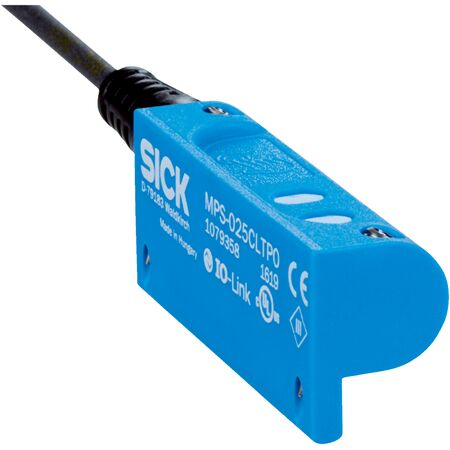

The SICK MPS-025CLTQDS01 Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and cylinder position monitoring applications.
