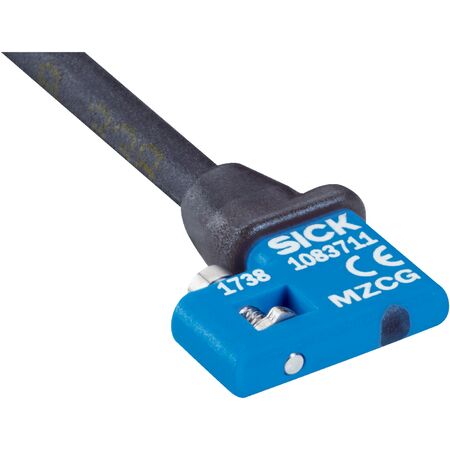

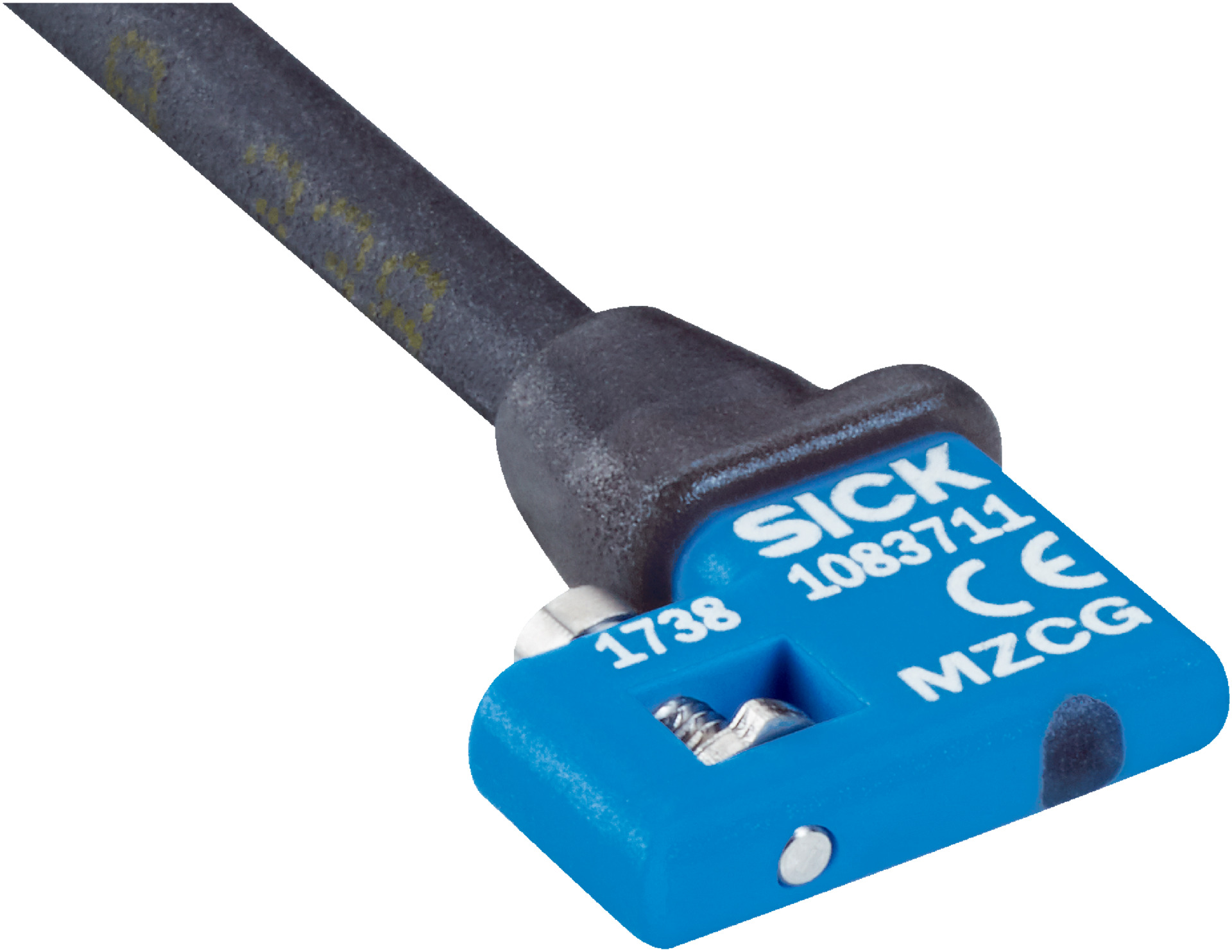

Cylinder Position Sensor | C-slot Type | NPN Output | IP68 Rated | by SICK
The Cylinder Position Sensor is designed for precise position sensing in industrial automation, featuring a C-slot type compatible with SMC rail CDQ2 and ECDQ2 adapters. With an NPN switching output and a high switching frequency of 1,000 Hz, this sensor ensures reliable performance in pneumatic cylinder monitoring and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible with SMC rail CDQ2 and ECDQ2 adapters
- Switching output: NPN, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED included
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-2
- Connection: Cable with M8 3-pin plug, 0.5 m length, PUR cable
- Cable diameter: 2.9 mm
- Bending radius: > 3x cable diameter fixed installation, > 10x flexible use
- Torsion force: ± 270° / 10 cm
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, suitable for drag chain use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic cylinder monitoring
- Manufacturing process control
- Robotics and assembly lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency in industrial systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7NS-KR0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
