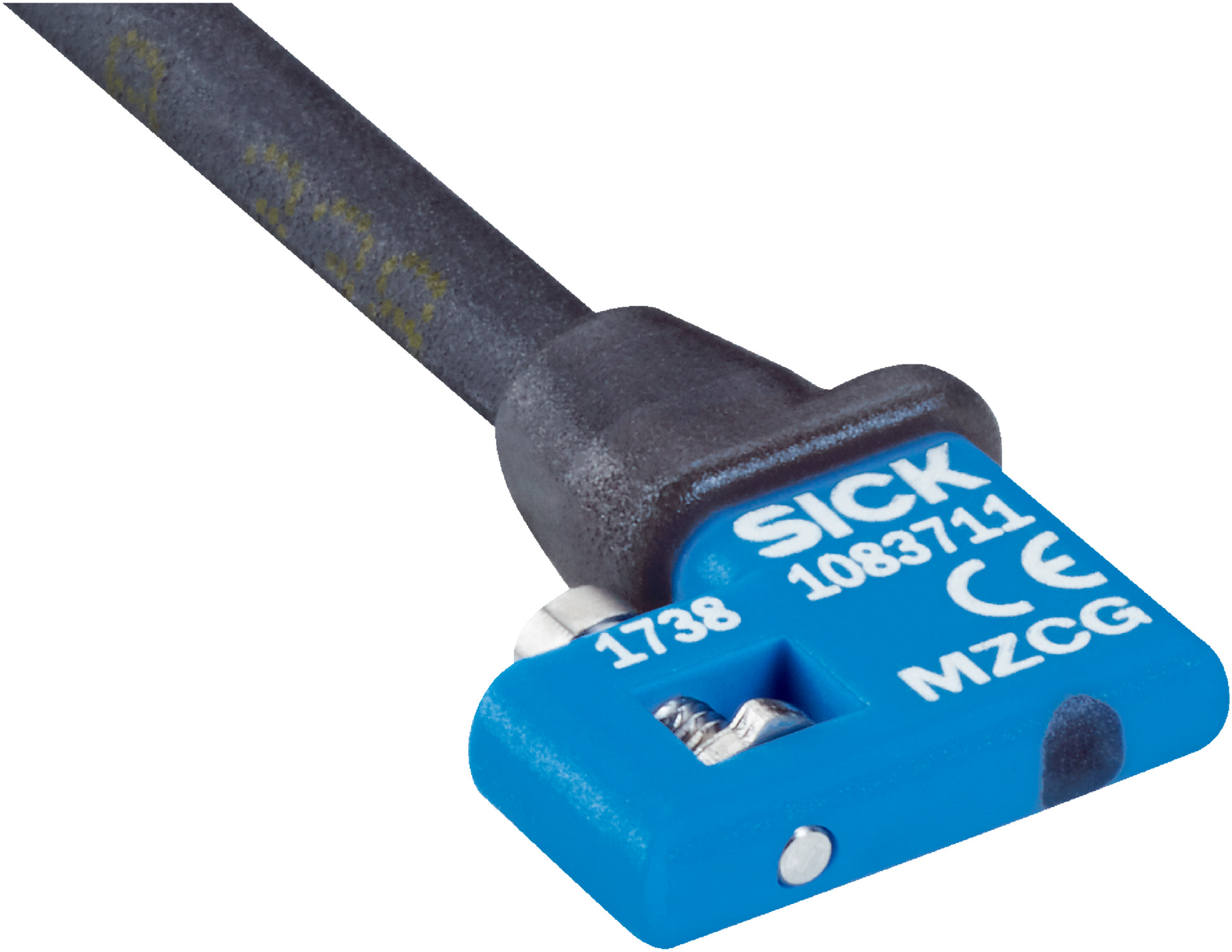

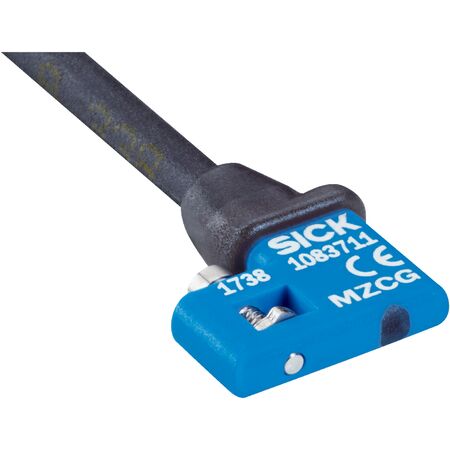

Cylinder Position Sensor | C-Slot Type | PNP Output | 1000 Hz Frequency | IP68 Rated | by SICK
The Cylinder Position Sensor is designed for precise cylinder position sensing in industrial automation. Featuring a C-slot type compatible with SMC rail CDQ2 and ECDQ2 adapters, this sensor offers a PNP switching output with a high frequency of 1,000 Hz. With an IP68 rated enclosure, it ensures robust protection against dust and water, making it ideal for pneumatic and hydraulic cylinder monitoring in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: PNP, NC function
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin plug, 0.5 m, PUR cable
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with NC function
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for robust protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, suitable for drag chain use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation and process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage
- Durable IP68 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7PO-KR0 cylinder sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
