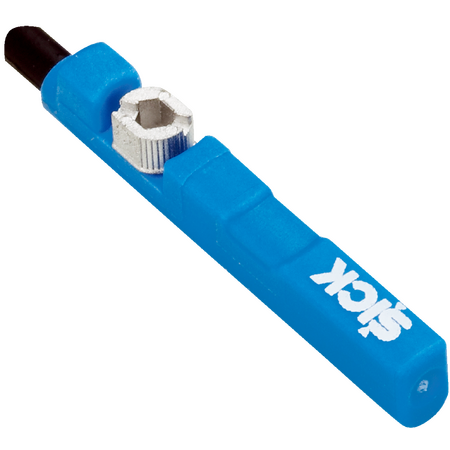

Cylinder Position Sensor | C-slot Type | PNP Output | IP68 Rated | by SICK
The Cylinder Position Sensor is designed for precise position sensing in industrial automation, featuring a C-slot type compatible with various cylinder adapters. With a PNP switching output and an impressive switching frequency of 1,000 Hz, it ensures fast and reliable performance. Built for harsh environments, this sensor is IP68 rated, making it ideal for applications requiring dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Cylinder Position Sensor, C-slot Magnetic Sensor, PNP Cylinder Sensor, SICK Cylinder Switch
Technical Specifications
- Cylinder type: C-slot
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 2.2 mT typical
- Overrun distance: 4 mm typical
- Hysteresis: ≤ 0.8 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: Cable with M8 3-pin connector, 0.3 m length
- Cable material: PUR
- Housing material: Plastic
- Dimensions (H x L x W): 24mm x 40mm x 10mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder adapters
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- Electrical wiring: DC 3-wire system
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 8 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin connector, suitable for drag chain use
- Operating temperature range from -30 °C to +80 °C
- Material: Plastic housing with PUR cable
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for position sensing on cylinders
- Use with SMC rail CDQ2, ECDQ2, round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP68 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption contributes to energy efficiency
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC1-2V2PS-KP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
