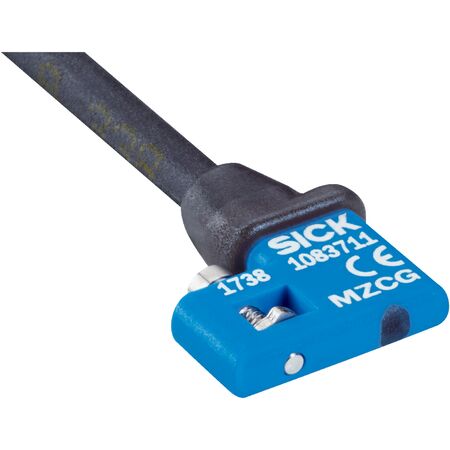

Cylinder Position Sensor | IP68 Rated | PNP Output & IO-Link | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor is designed for precise position feedback in industrial automation, featuring an IP68 rated enclosure for harsh environments and a high switching frequency of 1,000 Hz. Ideal for factory automation with pneumatic cylinders, this robust sensor ensures reliable performance with reverse polarity and short-circuit protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Enclosure rating: IP68
- Switching frequency: 1,000 Hz
- Output function: NO, IO-Link
- Electrical wiring: DC 3-wire
- Connection type: Cable with M8 3-pin connector, 0.5 m length
- Cable diameter: 2.9 mm
- Bending radius: > 3x cable diameter for fixed installation
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Ambient operating temperature: -30 °C to +80 °C
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- Process data length: 16 Bit
- Status indicator LED: Yes
- Reverse polarity and short-circuit protection: Yes
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2
- PNP switching output with NO and IO-Link output functions
- High switching frequency of 1,000 Hz
- IP68 rated enclosure for harsh environments
- Visual installation aid with yellow LED indicator and green power LED
- IO-Link communication interface with adjustable switch-on/off delay up to 1.6 seconds
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Reverse polarity, short-circuit, and power-up pulse protection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Factory automation with pneumatic cylinders
- Process control systems requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 7 mA reduces energy usage
- Durable design minimizes waste and replacement frequency
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7PSAKR0 cylinder sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position sensing applications.
