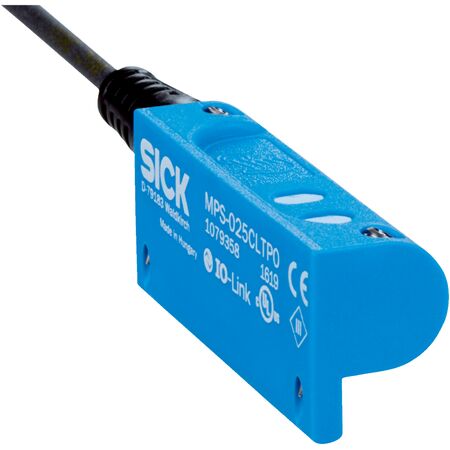

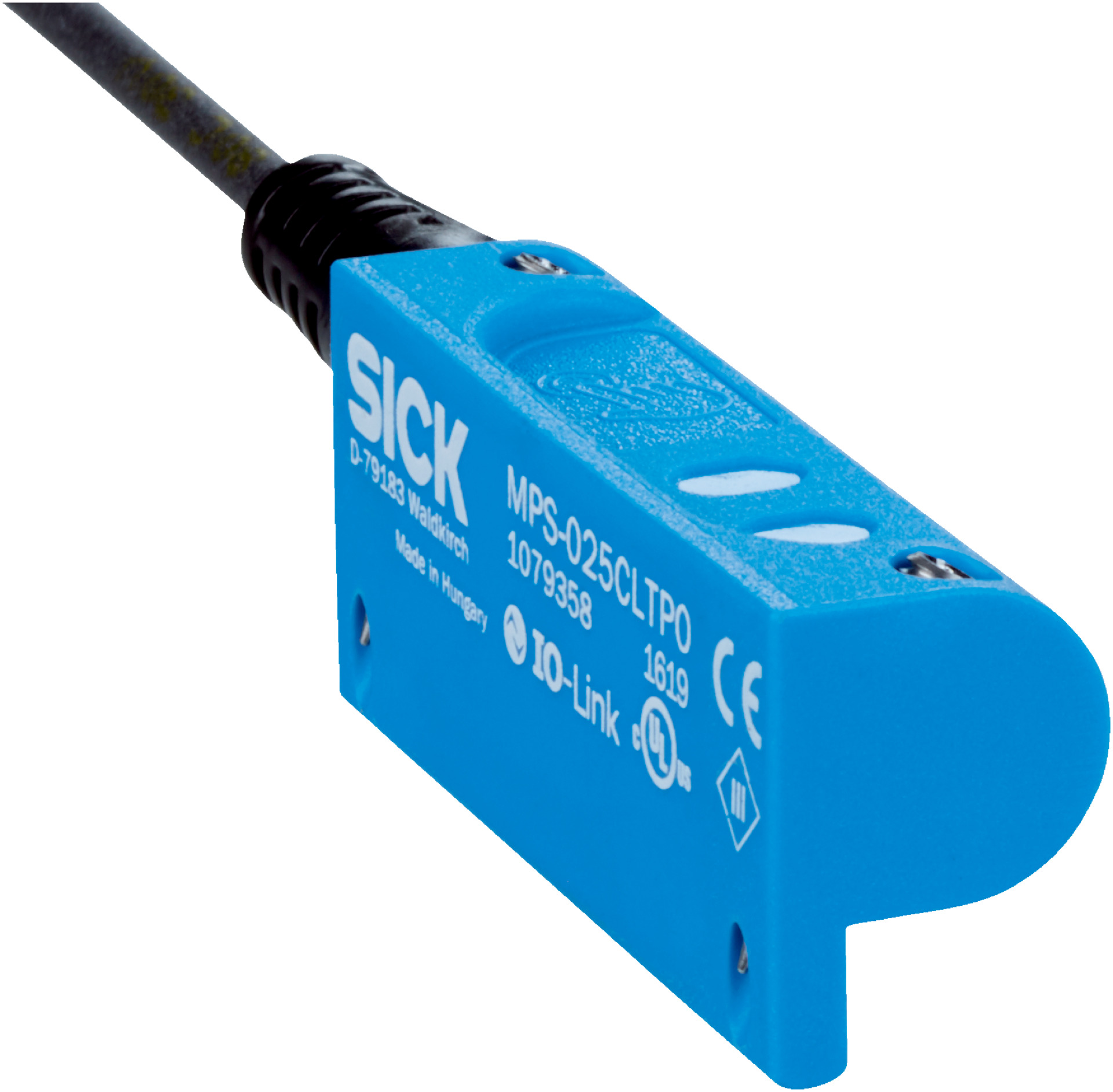

Cylinder Position Sensor MPS-025CLTU0 | IO-Link & Analog Output | IP67 Rated | by SICK
The Cylinder Position Sensor MPS-025CLTU0 is designed for precise cylinder position sensing in industrial automation. With IO-Link and analog output options, it offers a measuring range of 25 mm and operates efficiently in harsh environments thanks to its IP67 rating. Ideal for various cylinder types, this sensor ensures reliable performance with features like reverse polarity protection and a status indicator LED.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.1 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Digital switching output and teach-in functionality
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-7
- Connection: 4-wire cable, 2 m length, PUR material, axial outlet
- Dimensions (H x L x W): 15mm x 41mm x 15mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with various cylinder types and adapters
- Measuring range of 25 mm
- Push-pull switching output with PNP/NPN options
- Analog output options: 0 V to 10 V voltage or 4 mA to 20 mA current
- IO-Link V1.1 communication interface with COM3 and 1 ms cycle time
- IP67 rated enclosure for dust and water protection
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection: 4-wire, 2 m PUR cable with axial outlet
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position sensing
- Use with round body, profile, and tie-rod cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable IP67 housing reduces environmental impact by extending product life
- Compliant with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
