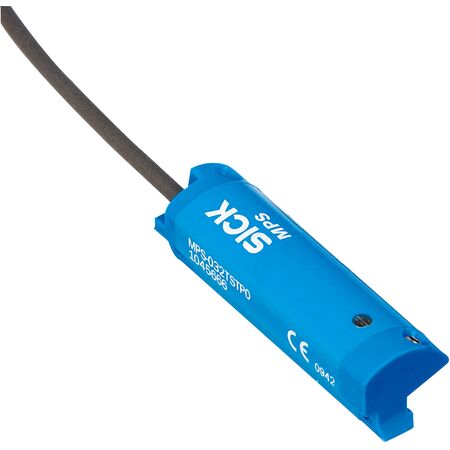

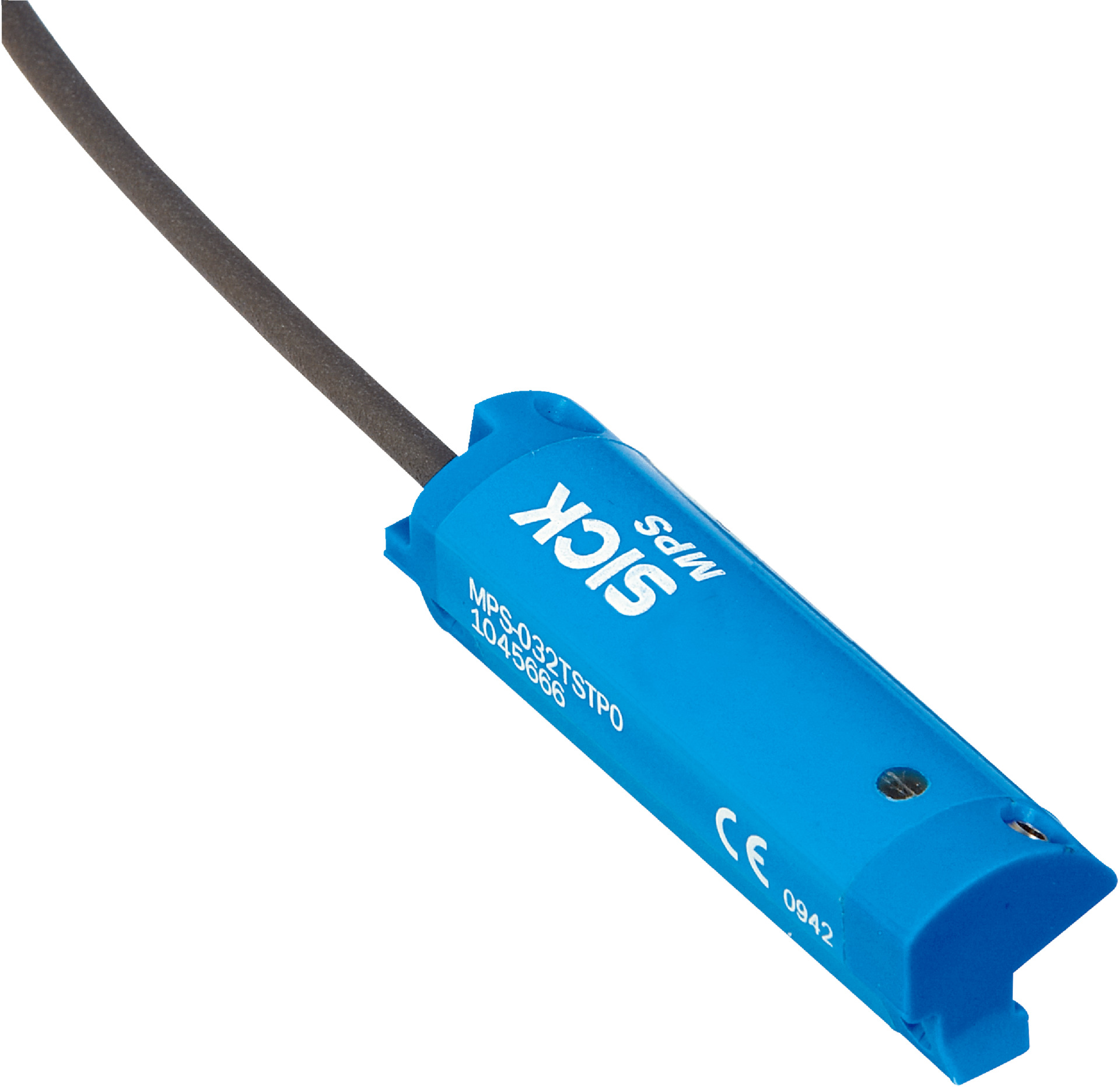

Cylinder Position Sensor MPS-032TSNP0 | Analog Output 0-10V | IP67 Rated | by SICK
The Cylinder Position Sensor MPS-032TSNP0 offers precise measurement with an analog output range of 0-10V and 4-20mA, making it ideal for industrial automation applications. With an IP67 rated enclosure, it withstands harsh environments while providing high resolution and repeat accuracy. Designed for compatibility with various cylinder profiles, this sensor ensures reliable performance in demanding conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylinder Position Sensor MPS-032TSNP0 | Analog Output 0-10V | IP67 Rated | by SICK
Brand: SICK
SKU: 1053835
Alternatively Known As: Cylinder Position Sensor, Analog Cylinder Sensor, T-slot Cylinder Sensor, SICK Position Sensor
Technical Specifications
- Measuring range: 32 mm
- Housing length: 45 mm
- Output function: Analog voltage 0-10 V and current 4-20 mA
- Supply voltage: 15 V DC to 30 V DC
- Power consumption: 22 mA without load
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 1.5 s
- Magnetic field sensitivity: 4 mT to 30 mT
- Resolution: 0.03% FSR (max ≥ 0.05 mm)
- Linearity error: 0.3 mm
- Repeat accuracy: 0.06% FSR (≥ 0.1 mm)
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant with EN 60947-5-7
- Dimensions (H x L x W): 45mm x 45mm x 32mm
- Weight: 0.1 kg
Key Features
- T-slot cylinder type compatible with various cylinder profiles
- Analog output with voltage 0 V to 10 V and current 4 mA to 20 mA
- DC 4-wire electrical wiring with reverse polarity and short-circuit protection
- IP67 rated enclosure for dust and water resistance
- High resolution of 0.03% FSR and repeat accuracy of 0.06% FSR
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation for precise cylinder position measurement
- Use with round body, profile, tie-rod, dovetail groove cylinders
- Suitable for harsh environments requiring IP67 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable IP67 housing reduces need for frequent replacements
- Low power consumption of 22 mA minimizes energy use
- Robust design reduces electronic waste through extended service life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK MPS-032TSNP0 position sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position measurement applications.
