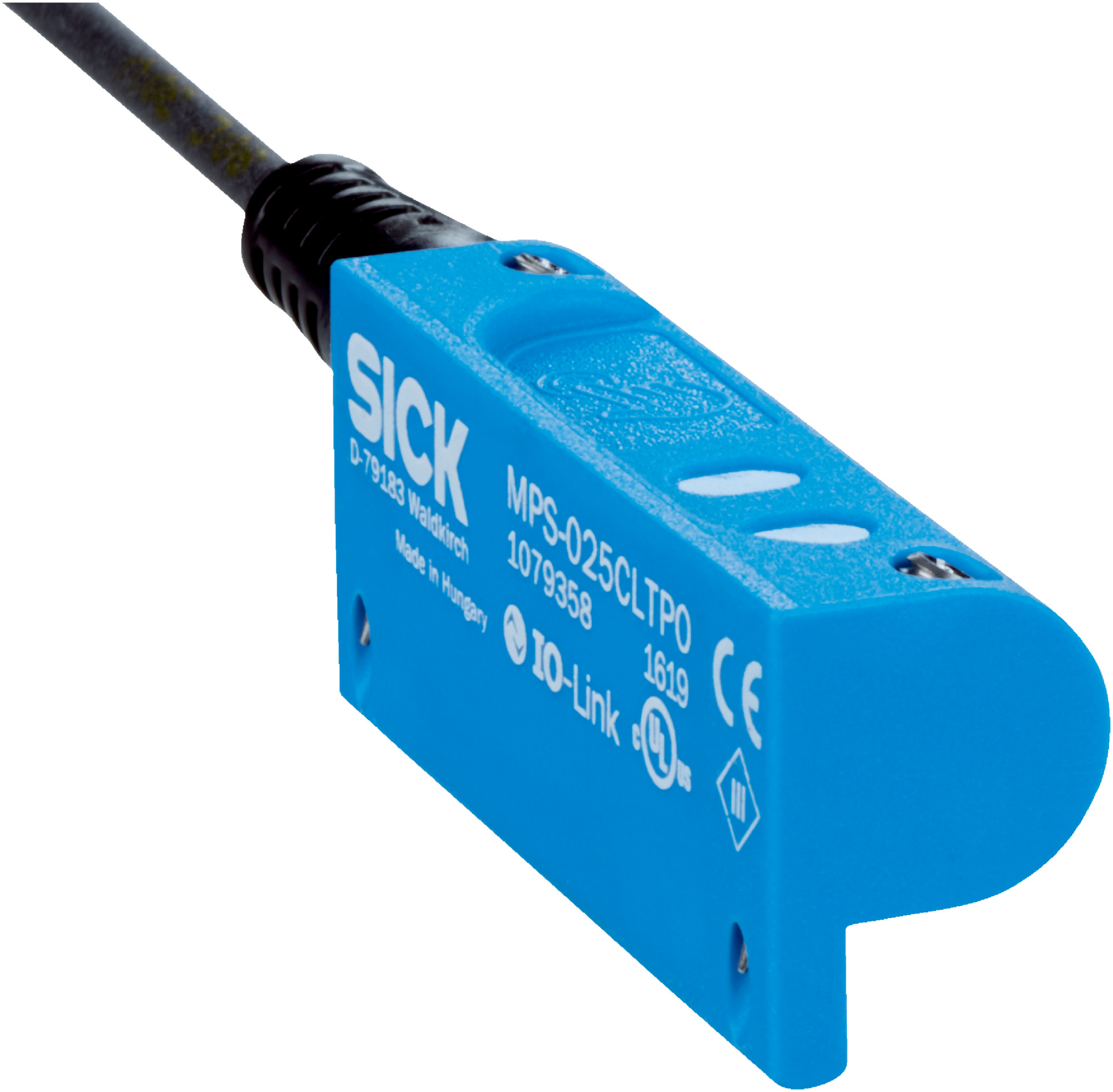

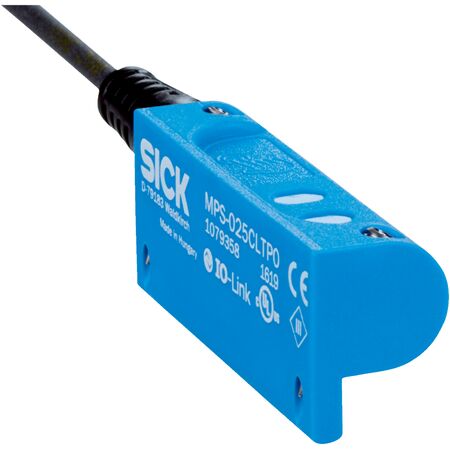

Cylinder Position Sensor MPS-050CLTP0 | IO-Link Communication | IP67 Rated | 50mm Measuring Range | by SICK
The Cylinder Position Sensor MPS-050CLTP0 is designed for precise position sensing in C-slot cylinders, featuring IO-Link communication and an IP67 rated enclosure for dust and water protection. With a measuring range of 50 mm and robust shock and vibration resistance, it's perfect for industrial automation systems requiring reliable feedback on cylinder positions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.1 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection included
- Status indicator LED present
- Digital switching output available
- Operating temperature: -20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC compliant according to EN 60947-5-7
- Connection: Cable with M8 male connector, 4-pin, 0.3 m
- Cable diameter: 2.6 mm, PUR material
- Bending radius: >5x cable diameter fixed, >10x flexible
- Housing material: Plastic
- Dimensions (H x L x W): 20mm x 65mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 50 mm
- Push-pull switching output with PNP/NPN options
- Analog output options: 0 V to 10 V voltage or 4 mA to 20 mA current
- IO-Link V1.1 communication interface with COM3 and 1 ms cycle time
- IP67 rated enclosure for dust and water protection
- Cable with M8 male connector, 4-pin, 0.3 m length
- Reverse polarity and short-circuit protection
- Status indicator LED for operational feedback
- Operating temperature range from -20 °C to +70 °C
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Teach-in functionality for analog and digital outputs
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and IO-Link communication protocols to ensure proper setup and safety compliance.
Applications
- Position sensing for C-slot cylinders
- Automation systems requiring precise cylinder position feedback
- Industrial machinery with round body, profile, and tie-rod cylinders
- Systems integrating SMC rail CDQ2 and ECDQ2 cylinders
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable IP67 rated housing reduces environmental waste by extending product life
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-050CLTP0 Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position detection applications.
