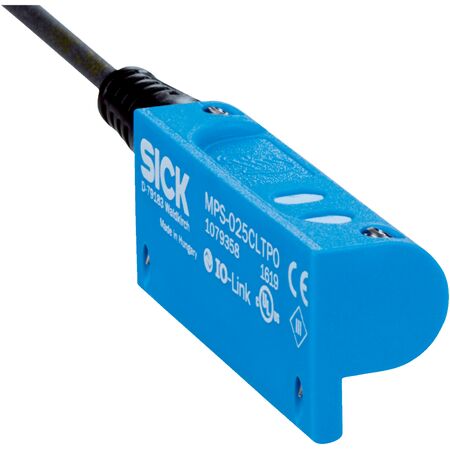

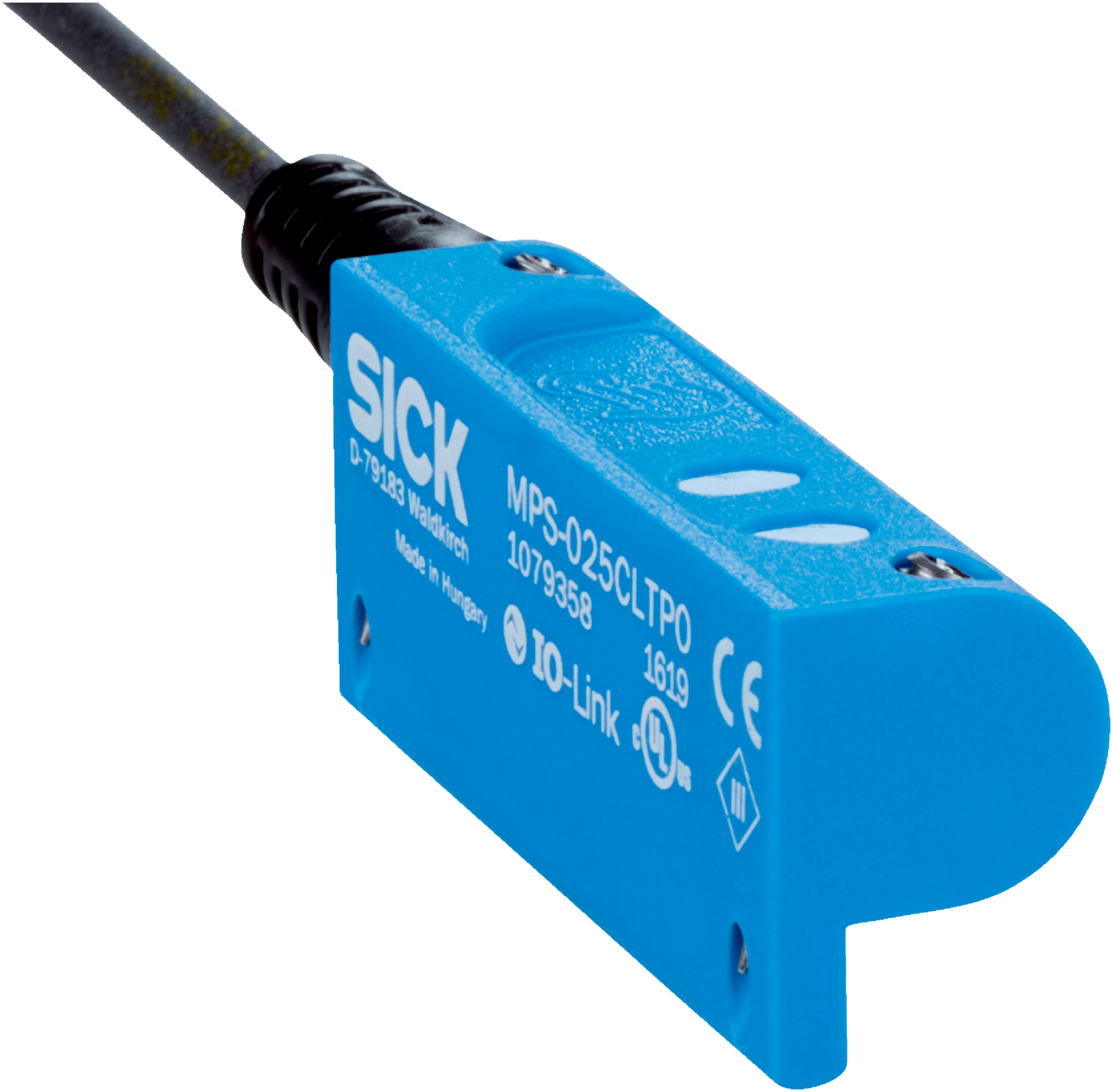

Cylinder Position Sensor MPS-100CLTQ0 | C-Slot Type | IP67 Rated | Analog & IO-Link Output | by SICK
The Cylinder Position Sensor MPS-100CLTQ0 is designed for precise position sensing in industrial automation, featuring a C-slot type compatible with various cylinder styles. With a measuring range of 100 mm and robust IP67 protection, it ensures reliable performance in harsh environments. Ideal for pneumatic and hydraulic applications, this sensor offers push-pull PNP/NPN switching output and high resolution of ≥ 50 µm for accurate feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Measuring range: 100 mm
- Switching output: Push-pull PNP/NPN
- Output function: Analog (0 V to 10 V, 4 mA to 20 mA), IO-Link
- Electrical wiring: DC 4-wire
- Enclosure rating: IP67
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: 42 mA without load
- Voltage drop: ≤ 2 V
- Continuous current Ia: ≤ 100 mA
- Max load resistance: ≤ 500 Ω at 24 V
- Min load resistance: ≥ 2 kΩ
- Protection class: III
- Time delay before availability: 0.15 s
- Magnetic field sensitivity: 3 mT to 12 mT
- Resolution: ≥ 50 µm
- Linearity error: 0.3 mm
- Repeat accuracy: 0.1 mm
- Sampling rate: 1 ms
- Reverse polarity and short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –20 °C to +70 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 to 55 Hz, 1 mm
- EMC: According to EN 60947-5-7
- Connection type: Cable with M12 4-pin connector, 0.3 m length
- Material: Plastic housing, PUR cable
- Dimensions (H x L x W): 20mm x 115mm x 20mm
- Weight: 0.2 kg
Key Features
- C-slot cylinder type compatible with round body, profile, and tie-rod cylinders
- Measuring range of 100 mm
- Push-pull PNP/NPN switching output with analog and IO-Link output functions
- IP67 rated enclosure for robust protection against dust and water
- Adjustable teach-in control panel for analog and digital output configuration
- Supply voltage range from 12 V DC to 30 V DC
- Short-circuit and reverse polarity protection
- Status indicator LED for operational feedback
- High resolution of ≥ 50 µm and repeat accuracy of 0.1 mm
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Communication via IO-Link V1.1 with 1 ms cycle time
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and configuration, especially for IO-Link communication setup.
Applications
- Industrial automation for cylinder position sensing
- Measurement and control in pneumatic and hydraulic cylinders
- Factory and process automation requiring precise position feedback
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient operation with low power consumption (42 mA without load)
- Durable IP67 housing reduces waste by extending product lifespan
- Compliant with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MPS-100CLTQ0 Cylinder Position Sensor is available for immediate purchase, ideal for industrial automation and precise cylinder position measurement applications.
