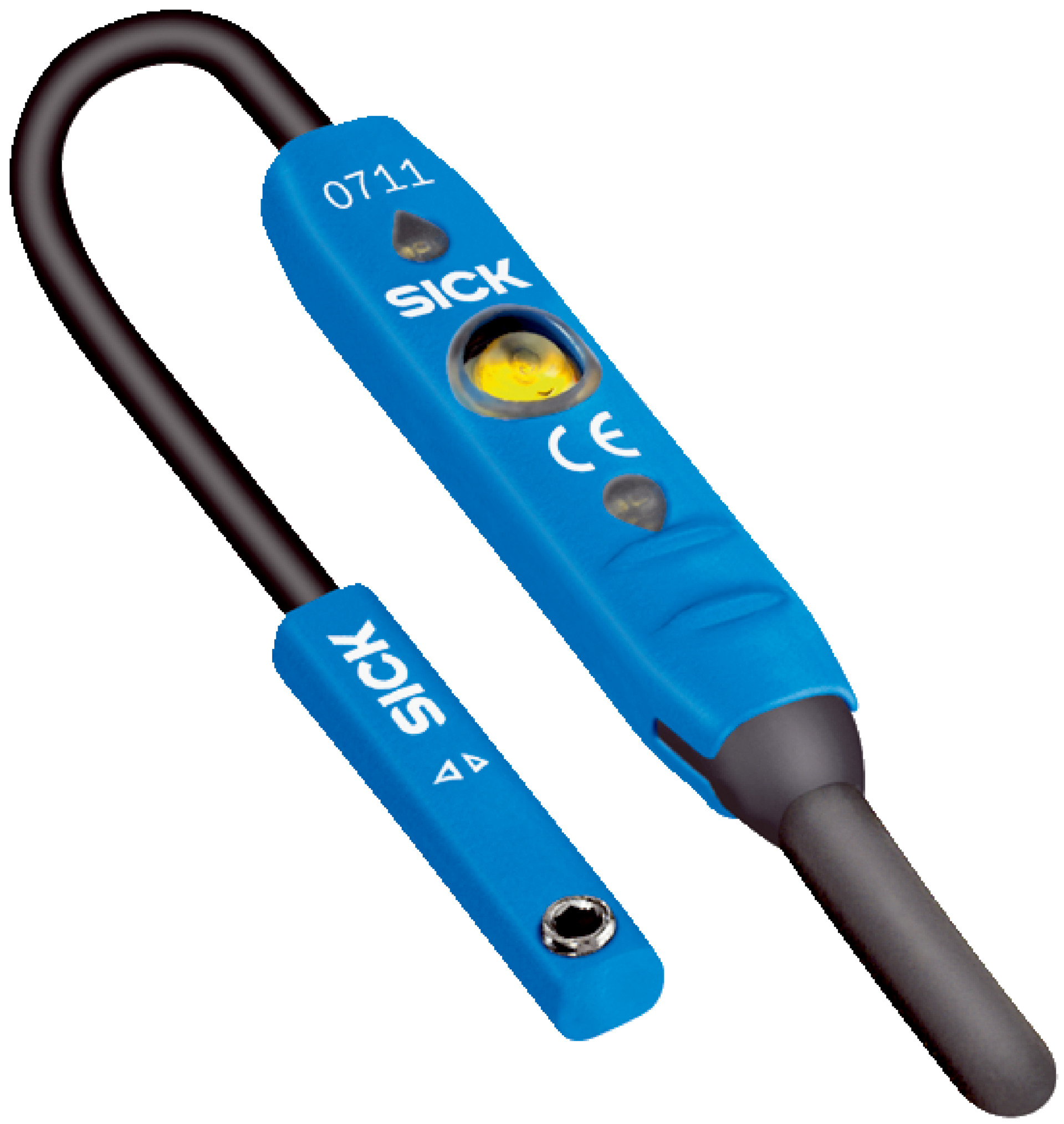

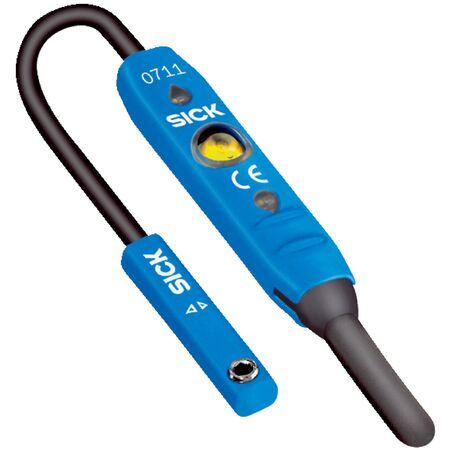

Cylinder Position Sensor MZ2Q-CSSPSKQ0 | C-Slot Type | IP67 Rated | 0-50mm Detection Zone | by SICK
The Cylinder Position Sensor MZ2Q-CSSPSKQ0 is designed for precise cylinder position detection in industrial automation. With a detection zone of 0 mm to 50 mm and IP67 rated for dust and water protection, this sensor is perfect for use with SMC and Bimba cylinders. Built for reliability, it features reverse polarity and short-circuit protection, making it ideal for demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Cylinder Position Sensor MZ2Q-CSSPSKQ0 | C-Slot Type | IP67 Rated | 0-50mm Detection Zone | by SICK
Brand: SICK
SKU: 1042240
Alternatively Known As: Cylinder Position Sensor, C-slot Cylinder Sensor, Pneumatic Cylinder Sensor, SICK Cylinder Sensor MZ2Q
Technical Specifications
- Cylinder type: C-slot
- Detection zone: 0 mm to 50 mm
- Switching output: 2 x PNP, 2 x N/O contact
- Electrical wiring: DC 4-wire
- Supply voltage: 12 V DC to 30 V DC
- Power consumption: Typical 20 mA without load
- Voltage drop: ≤ 2.2 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Hysteresis: Typical 1 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Teach-in function: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: -20 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable, 4-wire, 0.1 m, PUR cable
- Cable diameter: Ø 2.3 mm
- Housing material: Plastic
- Dimensions (H x L x W): 10mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC and Bimba
- Detection zone from 0 mm to 50 mm
- 2 x PNP switching outputs with normally open contacts
- DC 4-wire electrical wiring
- IP67 rated enclosure for dust and water protection
- Teach-in control panel for switching point adjustment
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
- Wide ambient operating temperature range from -20 °C to +75 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and sensor calibration.
Applications
- Industrial automation for cylinder position detection
- Use with SMC and Bimba cylinders
- Suitable for environments requiring IP67 rated sensors
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable IP67 housing reduces replacement frequency and waste
- Low power consumption (typ. 20 mA) supports energy efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MZ2Q-CSSPSKQ0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and pneumatic cylinder position detection applications.
