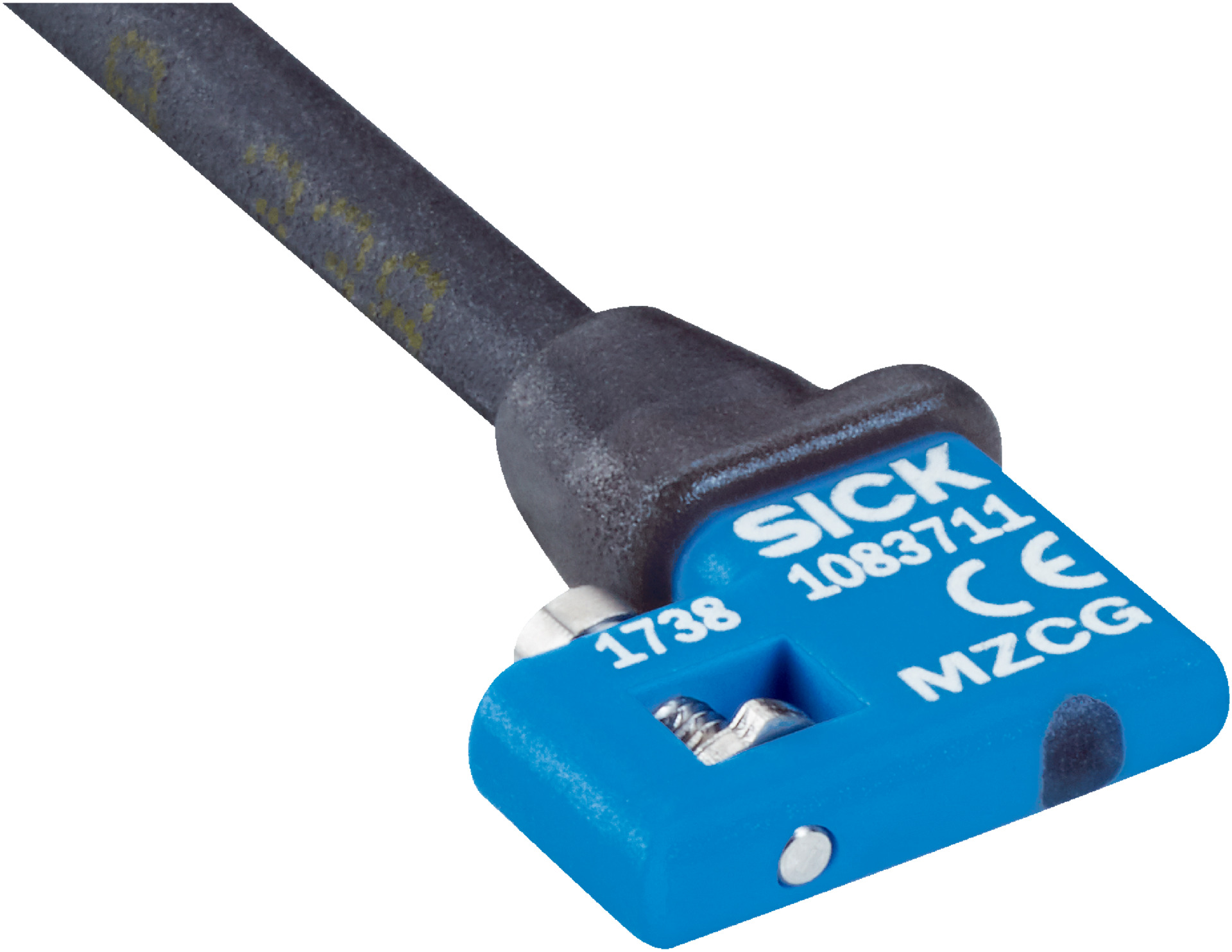

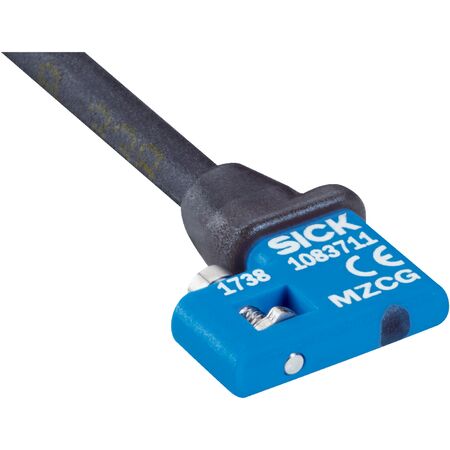

Cylinder Position Sensor MZCG-1Z7NO-KR0 | C-Slot Type | NPN Output | IP68 Rated | by SICK
The Cylinder Position Sensor MZCG-1Z7NO-KR0 is designed for precise cylinder position sensing in industrial automation. With a C-slot design compatible with SMC rail CDQ2 and ECDQ2 adapters, it features a high switching frequency of 1,000 Hz and an IP68 rated enclosure for dust and water protection. Ideal for pneumatic and hydraulic applications, this sensor ensures reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible adapters: SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 12.2 mm
- Switching output: NPN, normally closed (NC)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin plug, 0.5 m length, radial outlet
- Cable specifications: PUR, 0.14 mm² conductor cross section, 2.9 mm diameter
- Torsion force: ± 270° / 10 cm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Drag chain parameters: Max acceleration 5 m/s²
- UL File No.: NRKH.E181493 & NRKH7.E181493
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- NPN switching output with normally closed (NC) function
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for protection against dust and water
- Wide supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz)
- Cable with M8 3-pin plug, 0.5 m length, suitable for drag chain use
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable IP68 housing extends product life, reducing waste
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
