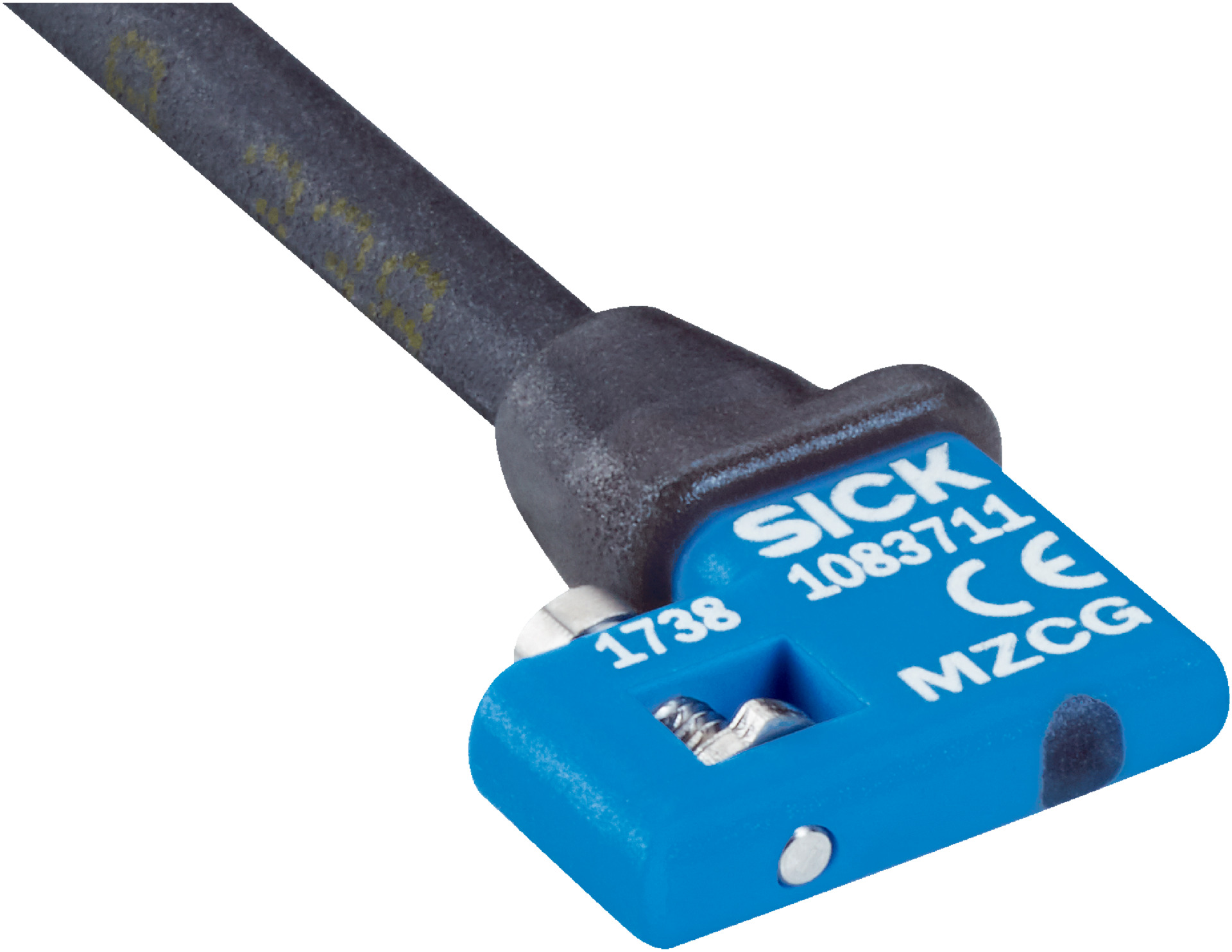

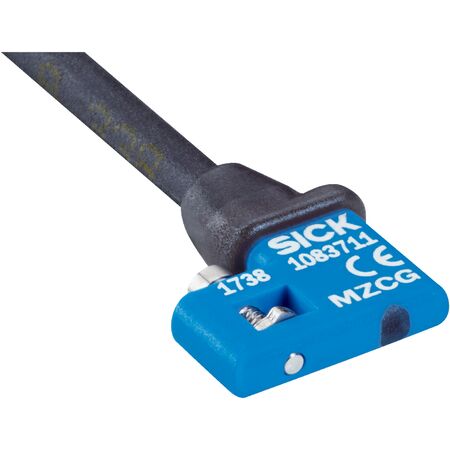

Cylinder Position Sensor MZCG-1Z7PS-KP0 | IP68 Rated | 1000 Hz Switching Frequency | PNP Output | by SICK
The Cylinder Position Sensor MZCG-1Z7PS-KP0 is designed for precise cylinder position sensing in industrial automation. With an IP68 rating for dust and water protection, a high switching frequency of 1000 Hz, and a PNP output function, it ensures reliable performance in harsh environments. Ideal for pneumatic and hydraulic applications, this sensor features robust construction and a status indicator LED for operational feedback.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO), PNP
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Reverse polarity, short-circuit, and power-up pulse protection included
- Status indicator LED present
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection: Cable with M8 3-pin connector, 0.3 m length, PUR cable
- Drag chain cycles: > 2,000,000
- Torsion force: ± 270° / 10 cm
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for protection against dust and water
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin connector, suitable for drag chain use with over 2 million cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper function and safety.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation and process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable design reduces replacement frequency and electronic waste
- Low power consumption of 7 mA minimizes energy use
- Robust protection extends product life in harsh environments
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7PS-KP0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
