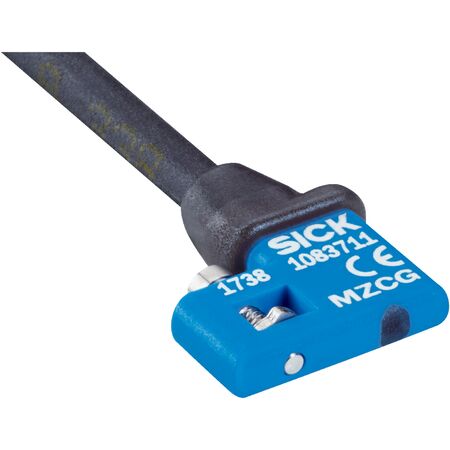

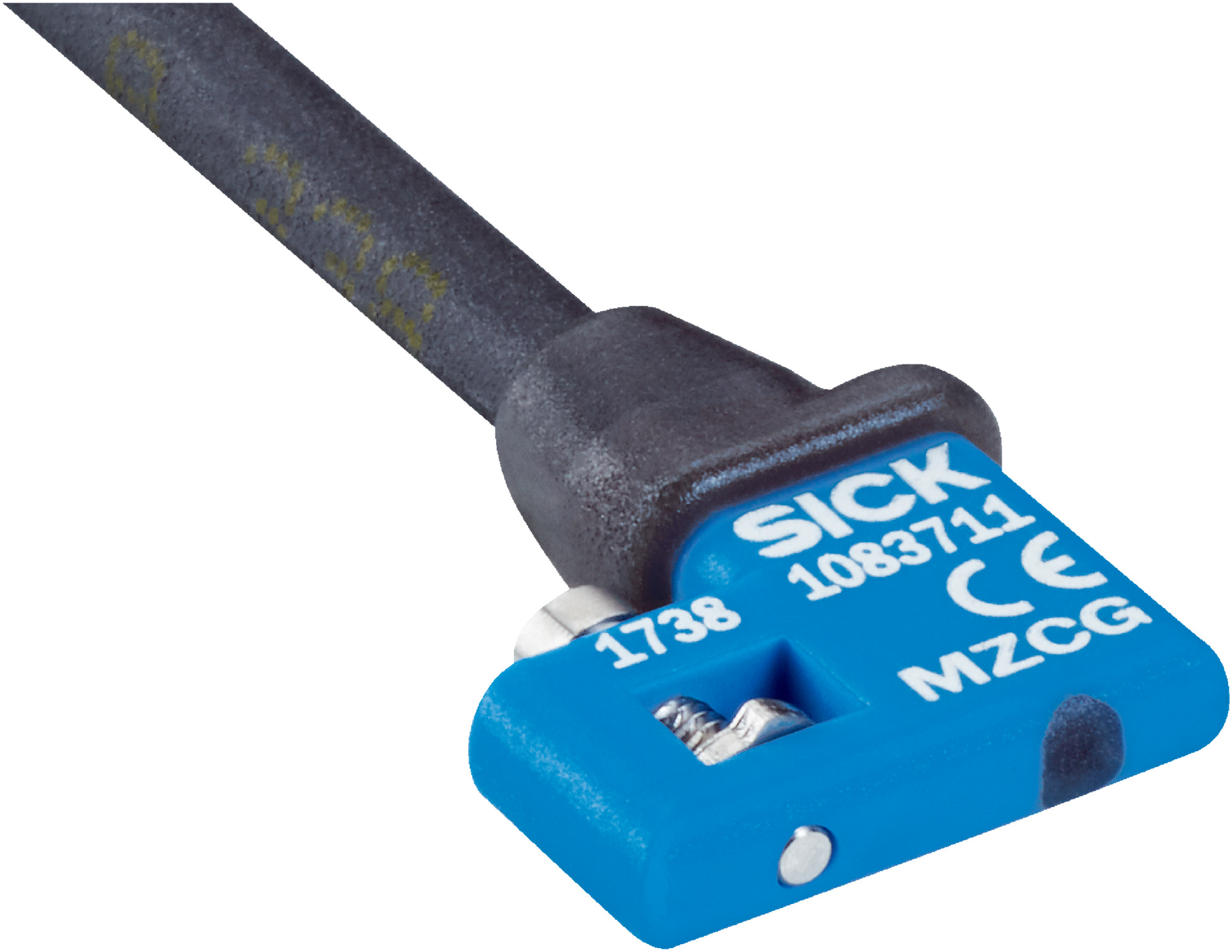

Cylinder Position Sensor MZCG-1Z7PS-KQ0 | C-Slot Type | PNP Output | IP68 Rated | by SICK
The Cylinder Position Sensor MZCG-1Z7PS-KQ0 is designed for precise cylinder position sensing in industrial automation. With a C-slot type compatible with SMC rail CDQ2 and ECDQ2 adapters, it features a PNP switching output and a high switching frequency of 1,000 Hz. Its robust IP68 rated enclosure ensures reliable performance in harsh environments, making it ideal for pneumatic and hydraulic cylinder monitoring, manufacturing process control, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible cylinder adapters: SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 12.2 mm
- Switching output: PNP
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA (without load)
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity (typical): 1.7 mT
- Overrun distance (typical): 2 mm
- Hysteresis (typical): ≤ 0.4 mT
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M12 3-pin connector, 0.3 m length, drag chain use
- Cable specifications: Conductor cross section 0.14 mm², cable diameter Ø 2.9 mm, bending radius > 3x cable diameter (fixed installation), > 10x cable diameter (flexible use)
- Torsion force: ± 270° / 10 cm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Drag chain parameters: Max acceleration 5 m/s²
- Cable outlet: Radial
- Material: Plastic housing, PUR cable
- UL File No.: NRKH.E181493 & NRKH7.E181493
- Dimensions (H x L x W): 12mm x 40mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M12 3-pin connector, suitable for drag chain use with over 2 million cycles
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical wiring and industrial sensor integration to ensure proper operation and safety compliance.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Manufacturing process control
- Robotics and material handling systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption reduces energy usage in industrial applications
- Durable design minimizes replacement frequency and electronic waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
