Cylinder Position Sensor MZCG-1Z7PS-KR0 | C-Slot Type | IP68 Rated | PNP Output | by SICK

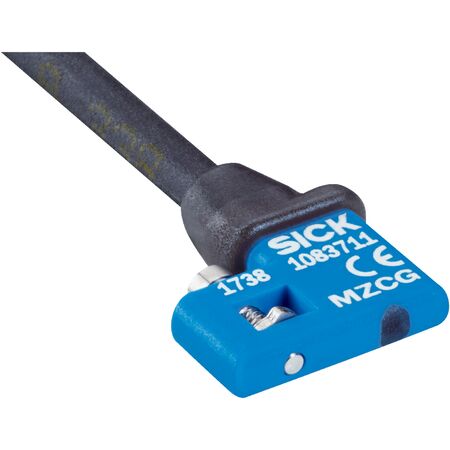

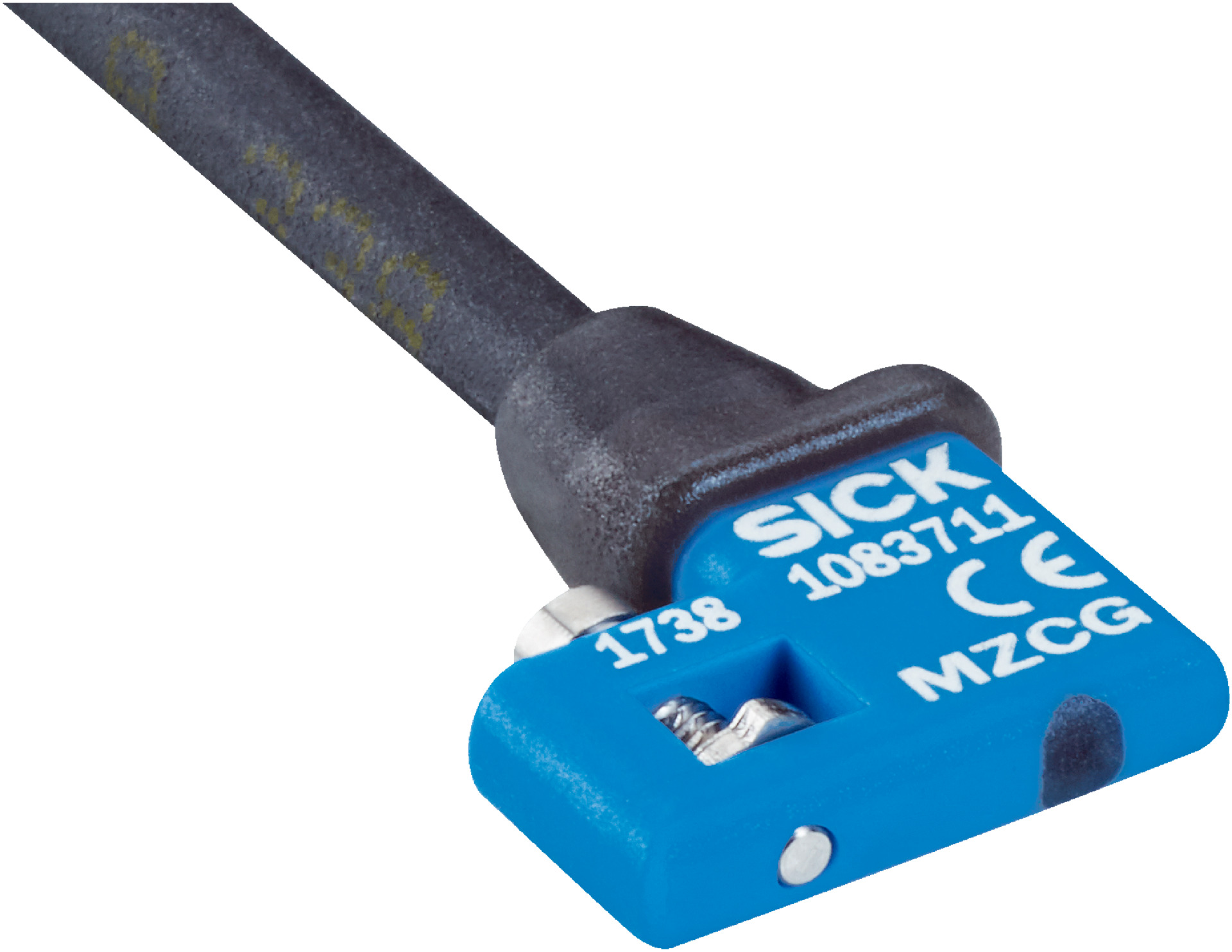

The Cylinder Position Sensor MZCG-1Z7PS-KR0 is designed for precise cylinder position sensing in industrial automation. With a C-slot design compatible with SMC rail CDQ2 and ECDQ2 adapters, it features a high switching frequency of 1,000 Hz and an IP68 enclosure rating for dust and water protection. Ideal for pneumatic and hydraulic applications, this sensor ensures reliable performance and low power consumption.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Compatible adapters: SMC rail CDQ2, SMC rail ECDQ2
- Housing length: 12.2 mm
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Power-up pulse protection: Yes
- Operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: Cable with M8 3-pin plug, 0.5 m length
- Cable diameter: 2.9 mm
- Bending radius: > 3 x cable diameter (fixed installation)
- Torsion force: ± 270° / 10 cm
- Torsion cycles: 2,000,000
- Drag chain cycles: > 2,000,000
- Material housing: Plastic
- Cable material: PUR
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Electrical wiring: DC 3-wire
- Enclosure rating IP68 for dust and water protection
- Supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable with M8 3-pin plug, 0.5 m length, suitable for drag chain use
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory and process automation requiring precise switching output
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable IP68 rated housing reduces replacement frequency and waste
- Low power consumption contributes to energy efficiency in automation systems
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
