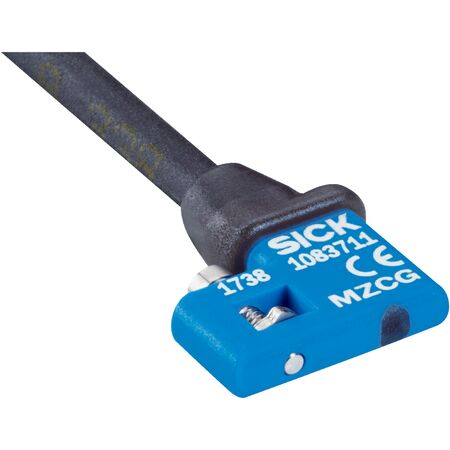

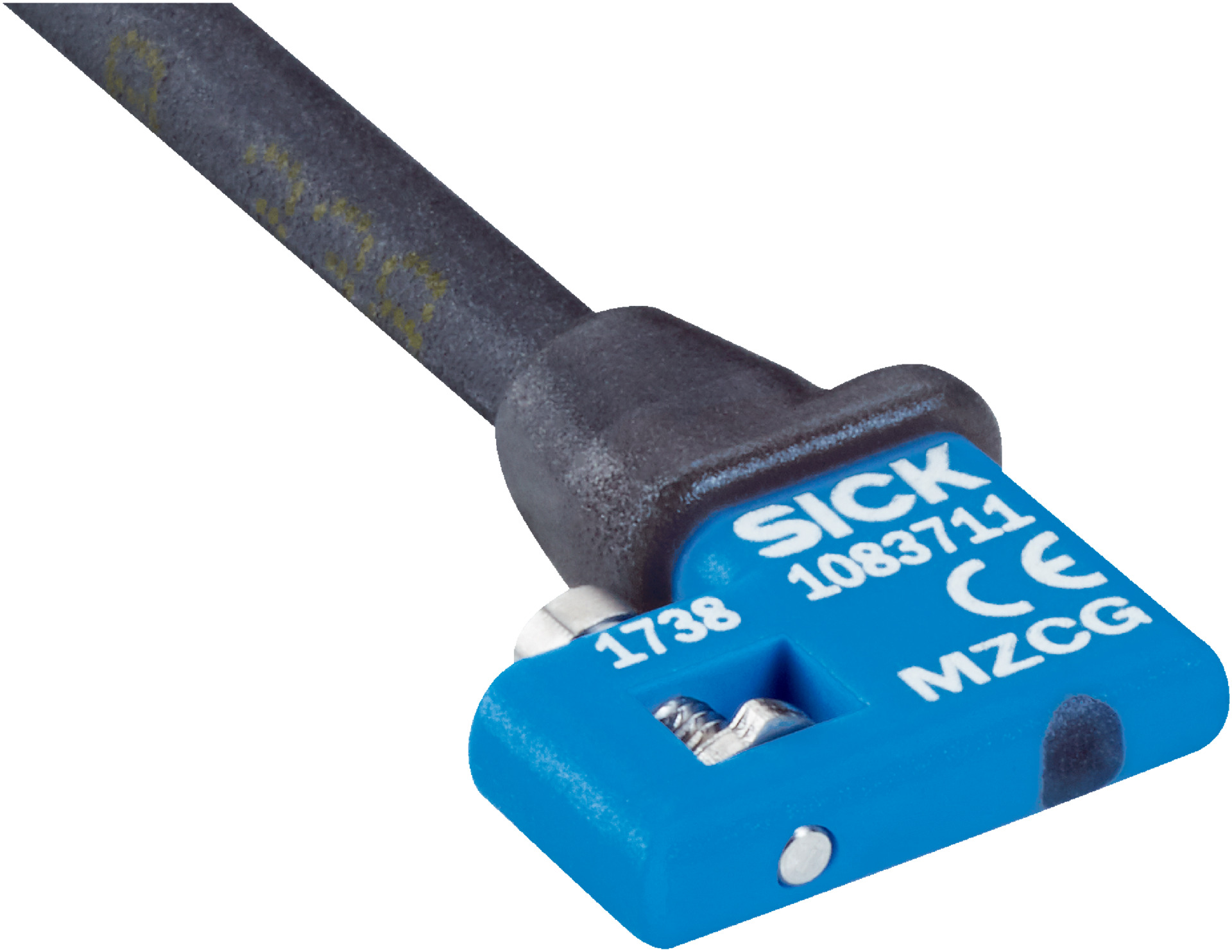

Cylinder Position Sensor MZCG-1Z7PS-KUB | PNP Output | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor MZCG-1Z7PS-KUB is designed for precise cylinder position sensing in industrial automation. With a PNP switching output and a high switching frequency of 1,000 Hz, it ensures reliable performance in pneumatic and hydraulic applications. Its robust IP68 rated housing provides excellent dust and water protection, making it ideal for factory automation and process control environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Cylinder type: C-slot
- Switching output: PNP, normally open (NO)
- Switching frequency: 1,000 Hz
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Protection class: III
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: -30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- EMC: According to EN 60947-5-2
- Connection type: 3-wire cable, 5 m length, PUR material
- Cable diameter: 2.9 mm
- Bending radius: > 3 x cable diameter (fixed installation)
- Torsion force: ± 270° / 10 cm
- Drag chain cycles: > 2,000,000
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- PNP switching output with normally open (NO) function
- High switching frequency of 1,000 Hz
- Enclosure rating IP68 for dust and water protection
- Wide supply voltage range from 10 V DC to 30 V DC
- Low power consumption of 7 mA without load
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable connection with 3-wire stripped cable, 5 m length, PUR material
- Operating temperature range from -30 °C to +80 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation and process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption reduces energy usage in automation systems
- Durable IP68 rated housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7PS-KUB Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
