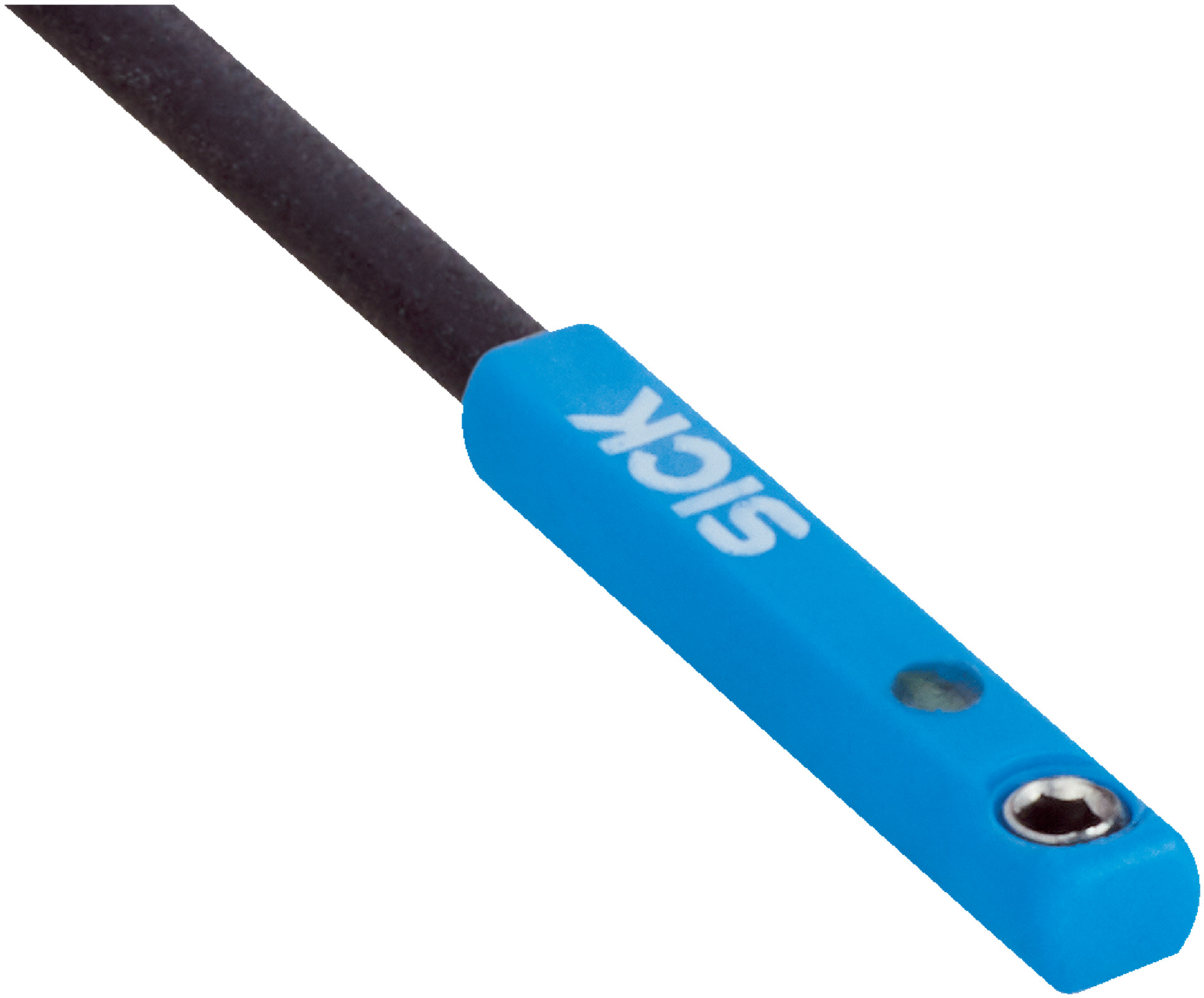

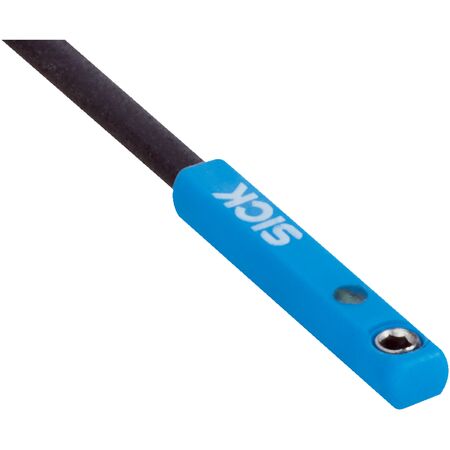

Cylinder Position Sensor | NPN Output | IP67 Rated | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor is designed for precise cylinder detection in industrial automation, featuring an NPN output and a high switching frequency of 1,000 Hz. With an IP67 rated enclosure, it offers excellent dust and water protection, making it ideal for pneumatic and hydraulic applications. Built for reliability, this sensor ensures optimal performance in manufacturing equipment and is perfect for professional installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 8 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Switching frequency: 1,000 Hz
- Electrical wiring: DC 3-wire
- Connection type: 2 m cable, 3-wire, stripped and tin plated
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +75 °C
- Shock and vibration resistance: 30 g, 11 ms / 10 ... 55 Hz, 1 mm
- Material: Plastic housing, PUR cable
- Status indicator: LED
- Reverse polarity, short-circuit, and power-up pulse protection included
- Dimensions (H x L x W): 10mm x 40mm x 20mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC, PHD, Bimba cylinders
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP67 rated enclosure for dust and water protection
- Completely embedded mounting in the slot for protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Shock and vibration resistant (30 g, 11 ms / 10 ... 55 Hz, 1 mm)
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper wiring and mounting according to safety standards.
Applications
- Industrial automation for cylinder position sensing
- Manufacturing equipment requiring precise cylinder detection
- Pneumatic and hydraulic cylinder monitoring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption of 8 mA reduces energy usage
- Durable IP67 housing extends product life and reduces waste
- Complies with China-RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZC2-1V7NS-SU0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
