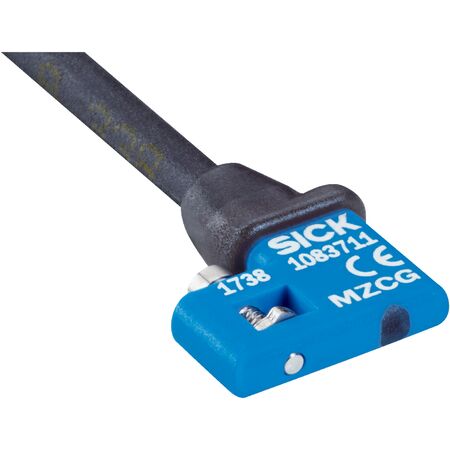

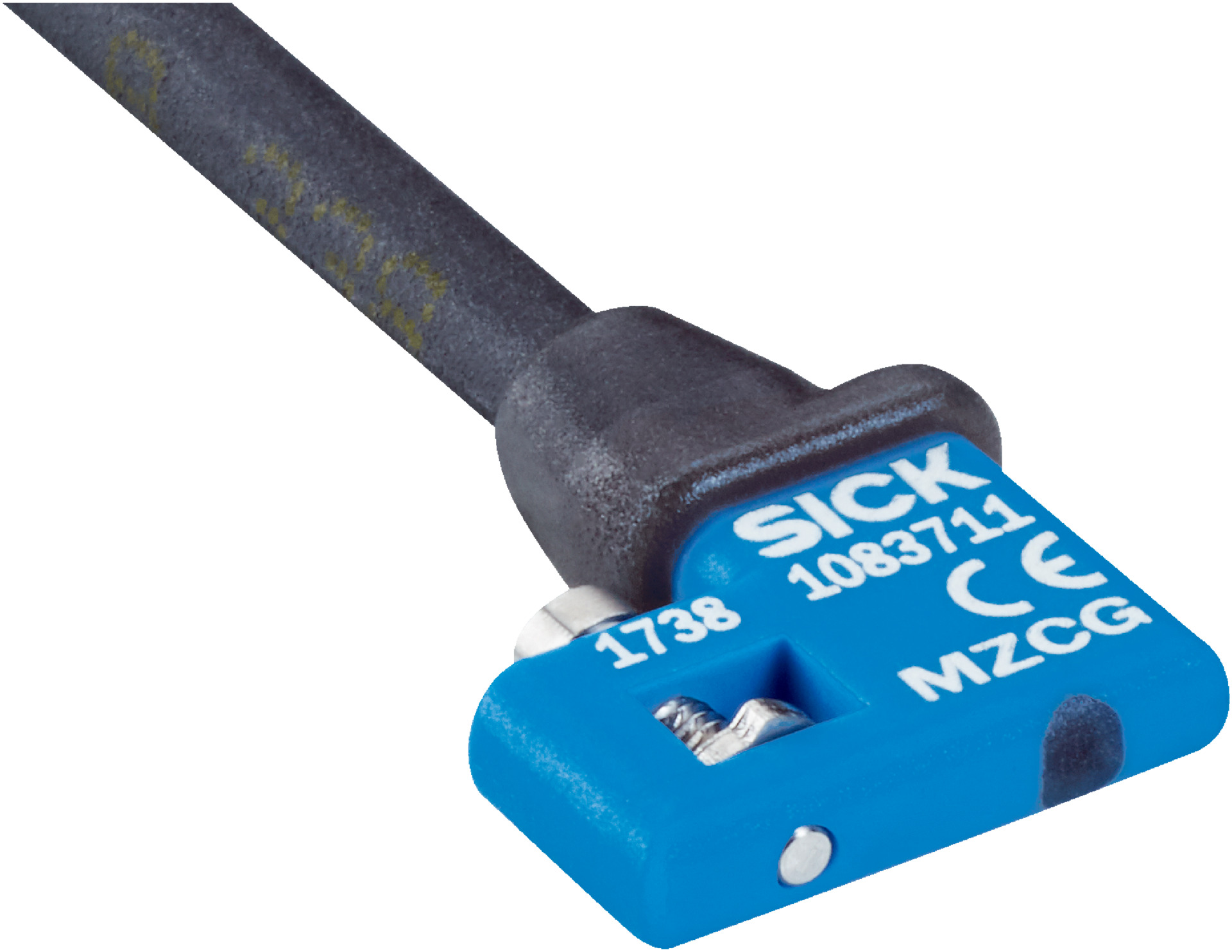

Cylinder Position Sensor | NPN Output | IP68 Rated | 1000 Hz Switching Frequency | by SICK
The Cylinder Position Sensor is designed for precise cylinder position sensing in industrial automation. With an NPN output and a high switching frequency of 1,000 Hz, it ensures fast and reliable performance. Its IP68 rated enclosure provides excellent dust and water protection, making it ideal for pneumatic and hydraulic applications in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Power consumption: 7 mA without load
- Voltage drop: ≤ 2.5 V
- Continuous current Ia: ≤ 100 mA
- Switching frequency: 1,000 Hz
- Output function: Normally Open (NO)
- Switching output: NPN
- Electrical wiring: DC 3-wire
- Enclosure rating: IP68
- Response sensitivity: 1.7 mT typical
- Overrun distance: 2 mm typical
- Hysteresis: ≤ 0.4 mT typical
- Reproducibility: ≤ 0.1 mT
- Protection class: III
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Status indicator LED: Yes
- Ambient operating temperature: –30 °C to +80 °C
- Shock and vibration resistance: 30 g, 11 ms / 10-55 Hz, 1 mm
- Connection type: 3-wire cable, 2 m PUR, radial outlet
- Cable diameter: Ø 2.9 mm
- Bending radius: > 3 x cable diameter (fixed installation)
- Torsion force: ± 270° / 10 cm
- Drag chain cycles: > 2,000,000
- EMC: According to EN 60947-5-2
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- C-slot cylinder type compatible with SMC rail CDQ2 and ECDQ2 adapters
- NPN switching output with normally open (NO) function
- High switching frequency of 1,000 Hz for fast response
- IP68 rated enclosure for dust and water protection
- Reverse polarity, short-circuit, and power-up pulse protection
- Status indicator LED for operational feedback
- Robust design with shock and vibration resistance (30 g, 11 ms / 10-55 Hz, 1 mm)
- Cable outlet radial with 2 m PUR cable suitable for drag chain use
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connections and compliance with safety standards.
Applications
- Industrial automation for cylinder position sensing
- Pneumatic and hydraulic cylinder monitoring
- Factory automation and process control
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption of 7 mA reduces energy usage
- Durable design minimizes replacement frequency and waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MZCG-1Z7NS-KU0 Cylinder Sensor is available for immediate purchase, ideal for industrial automation and cylinder position sensing applications.
